FIREBALL-4.101

FIREBALL-4.101

  • Stable Operation at 2 Ohms load
  • Powerfull Power Supply
  • Effective Protection
  • 12db/OCT High Pass Filter (HPF)
  • 12db/OCT Low Pass Filter (LPF)
  • LOW THD ratio

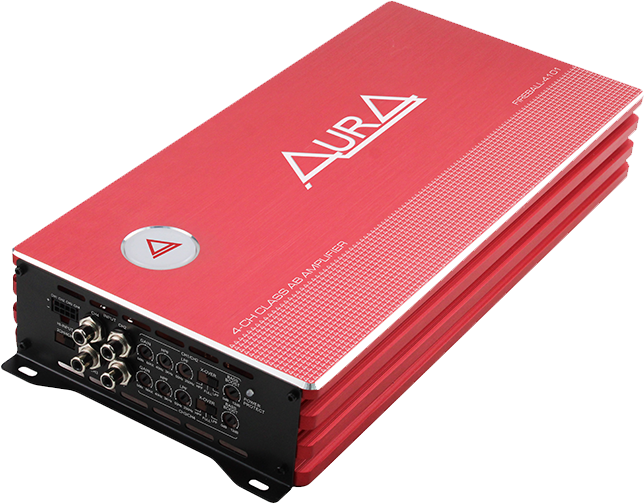

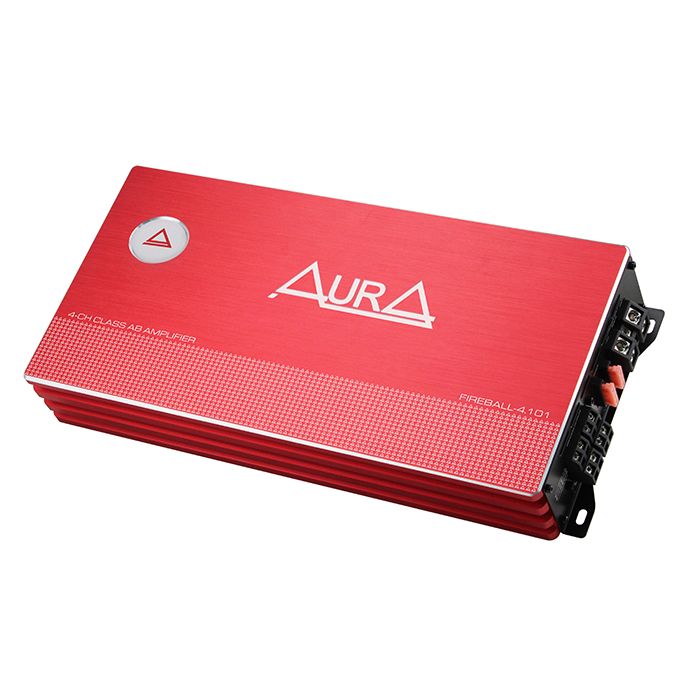

Introducing the Aura Fireball Series Class AB Car Amplifier – Precision, Power, and Performance Redefined

Aura proudly presents the latest addition to its acclaimed Fireball series: a high-performance Class AB car amplifier engineered for superior audio clarity and robust reliability. Designed for audiophiles and car audio enthusiasts alike, this new model combines advanced features, efficient design, and powerful output, making it a standout in its class.

Performance That Commands Attention

At the heart of this amplifier lies a meticulously tuned Class AB topology that delivers clean and consistent output across a variety of load conditions. With RMS power ratings 101W x 4CH @ 4 Ohms, it ensures stable power delivery with less than 1% total harmonic distortion (T.H.D.), preserving the integrity of your sound. For more demanding setups, its bridged mono mode outputs an impressive 250W x 2CH @ 4 Ohms, offering powerful low-end response and dynamic headroom.

Flexible Connectivity and Control

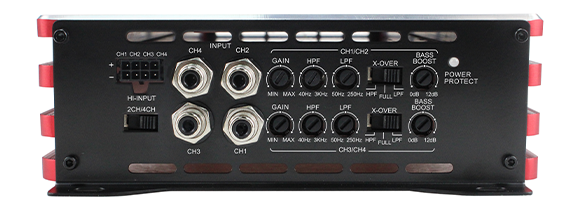

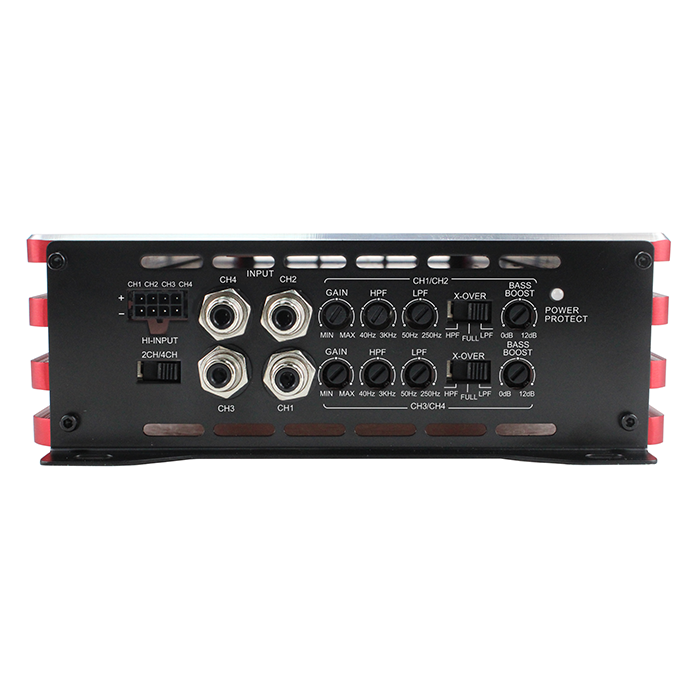

The amplifier offers versatile input options with both RCA unbalanced inputs (tiffany-style) and high-level inputs, making it compatible with factory and aftermarket systems. With an input sensitivity of 6V, it accepts a wide range of input levels with minimal noise. The built-in low pass filter (50Hz–250Hz) and high pass filter (40Hz–3kHz) give users fine control over crossover points, while a selectable 12dB crossover slope and bass boost enhance low-frequency output for a deeper, more immersive audio experience.

Durability and Smart Protection

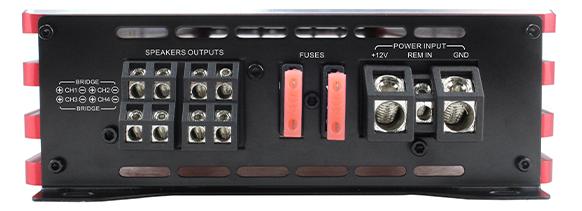

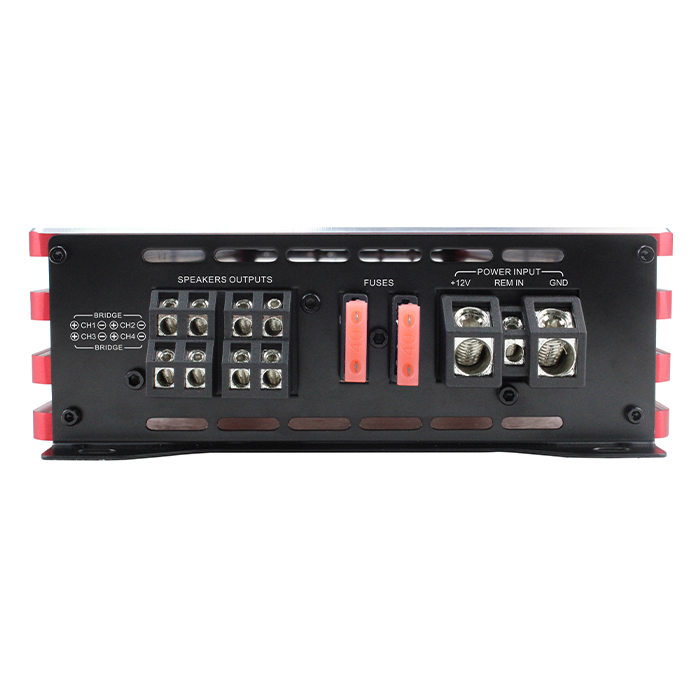

Constructed on a durable 2-layer red PCB, the amplifier showcases both aesthetic appeal and functional design. It features high/low voltage protection (9V–17V) to ensure consistent performance in various automotive conditions, and a REM turn-on trigger simplifies system integration. The working status LED indicator (POWER) provide instant visual feedback for real-time monitoring.

Quiet Operation and Clean Output

With an ultra-low idle current of 0mA, the amplifier offers energy-efficient standby performance. Its signal-to-noise ratio exceeding 95dB ensures crisp, clean sound reproduction, while maintaining <1% T.H.D., so every note comes through with maximum fidelity.

Aura Fireball – When Passion Meets Precision.

Experience the perfect fusion of power, control, and design. Whether you're upgrading your current system or building a new one from the ground up, the new Fireball Series amplifier is engineered to ignite your audio journey.

ParameterValue
Model FIREBALL-4.101
RMS power, 4Ω (W) 101 × 4
RMS power, 2Ω (W) 125 × 4
RMS power, 4Ω bridge (W) 250 × 2
Working resistance, Ohm 2 / 4
Input sensitivity 6 V - 0.2 V
HPF filter 40 Hz - 3 kHz
LPF filter (rear channels) 50 - 250 Hz
Bass Boost (rear channels) 0 / 6 / 12 dB
Frequency range 10 Hz - 30 kHz
Signal/noise ratio >96 dB
Total harmonic distortion < 0.1%
Working Voltage 9 V - 15 V
Dimensions (L × W × H), mm 340 × 165 × 54.5
Name
Download
FIREBALL-4.101 Instruction Manual
FIREBALL-4.101 TEST PARAMETERS
