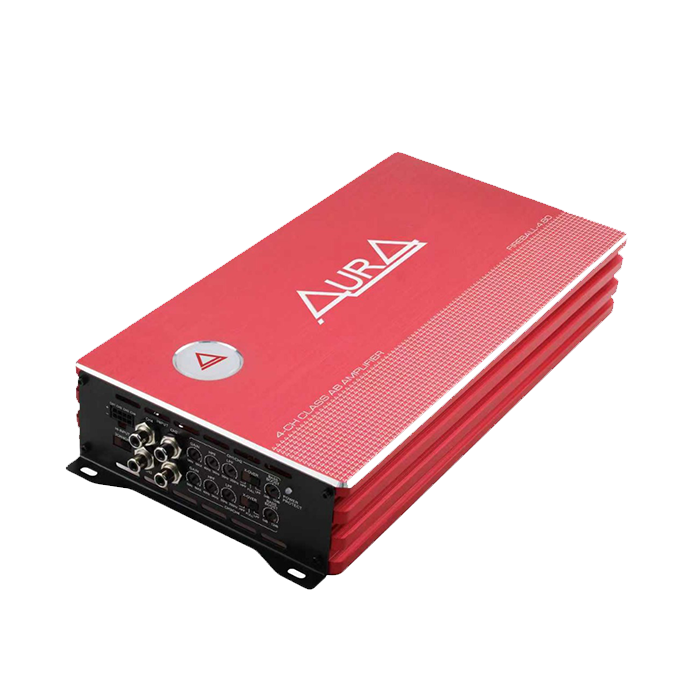

FIREBALL-4.80

FIREBALL-4.80

  • Stable Operation at 2 Ohms load
  • Powerfull Power Supply
  • Effective Protection
  • 12db/OCT High Pass Filter (HPF)
  • 12db/OCT Low Pass Filter (LPF)
  • LOW THD ratio


Description Not Available
Model FIREBALL 4.80
RMS power, 4Ω (W) 80 × 4
RMS power, 2Ω (W) 110 × 4
RMS power, 4Ω bridge (W) 220 × 2
Working resistance, Ohm 2 / 4
Input sensitivity 6 V - 0.2 V
HPF filter 40 Hz - 3 kHz
LPF filter (rear channels) 50 - 250 Hz
Bass Boost (rear channels) 0 / 6 / 12 dB
Frequency range 10 Hz - 30 kHz
Signal/noise ratio >95 dB
Total harmonic distortion < 0.1%
Working Voltage 9 V - 15 V
Dimensions (L × W × H), mm 300 × 165 × 54.5
Name
Download
FIREBALL-4.80 INSTRUCTION MANUAL
