Fireball-6.8 DSP

Fireball-6.8 DSP

8-Channel DSP Amplifier

Introducing the Aura Fireball-6.8 DSP Amplifier : Experience the Future of Sound Engineering

Elevate your audio experience with the Aura Fireball-6.8 DSP Amplifier, where cutting-edge technology meets unparalleled performance. Designed to meet the demands of audiophiles and professionals alike, this DSP amplifier redefines excellence in sound engineering.

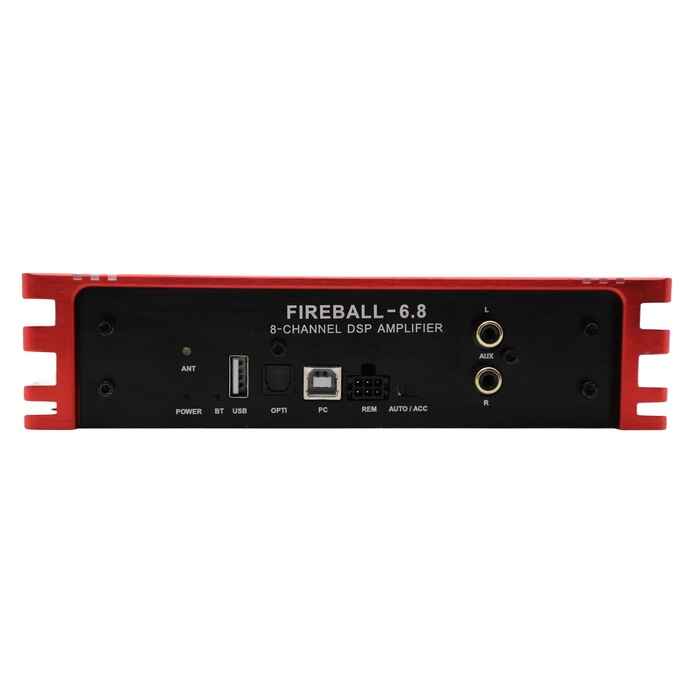

Advanced Connectivity Options

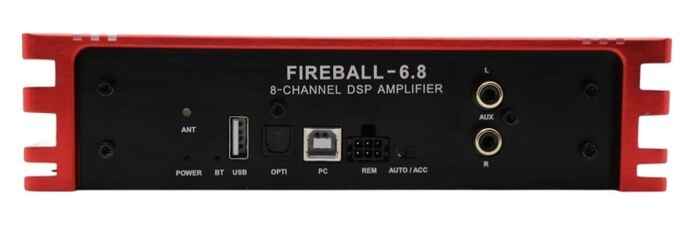

  • Versatile Inputs: With 6 High Level inputs, 2 RCA inputs, Optical input, Bluetooth, and USB connectivity, the Fireball-6.8 ensures compatibility with a wide range of devices, from traditional audio sources to modern digital platforms.

  • Precise Input Voltage Management: Experience optimal signal reception with input voltage ranging from 0.5V to 10V for High Level inputs and 0.5V to 5V for RCA inputs.

Exceptional Output Capabilities

  • Powerful Output: Delivering unparalleled performance, the Fireball-6.8 offers 8 High Level outputs and 8 RCA outputs, capable of handling up to -10Vrms on the amplifier output and 2Vrms on RCA outputs.
  • High-Fidelity Amplification: Utilizing Class AB amplifier technology, this amplifier provides a robust power output of 8x25W @ 4 OHMS and 8x50W @ 2 OHMS, ensuring crystal-clear sound reproduction.

State-of-the-Art Signal Processing

  • Intelligent Signal Conversion: Equipped with Cirrus Logic Smart HiFi 3-core DSP, the Fireball-6.8 ensures precise AD & DA signal conversion, maintaining fidelity at every stage of audio processing.
  • Enhanced Sampling Rate: Experience audio in its purest form with a sampling rate of 24Bit/192KHz ADC/DAC, delivering unparalleled clarity and detail.

Customizable Audio Control

  • Fine-Tuned Equalization: Tailor your audio experience with a 31-band EQ and 15ms delay, offering precise control over frequency response and time alignment.

  • Flexible Filtering Options: Choose from Butter, Bessel, and Link filters with adjustable crossover points and slopes, ranging from 6dB/oct to 48dB/oct.

Seamless Integration and Control

  • Intuitive User Interface: Seamlessly navigate settings and presets with the Aura Fireball-6.8 PC software, Android, and iOS apps, adorned with our brand logo for easy identification.

PC SOFTWARE/IOS & ANDROID APP- 31-Band EQ/X-Over/Master Volume Control/ Time Delay

Aura PC Software and Mobile App Logo

  • Effortless Bluetooth Connectivity: Stream your favourite music wirelessly with Bluetooth 5.1, ensuring stable connections and high-quality audio playback.

Reliability and Convenience

  • Robust Construction: Engineered with high-quality components, the Fireball-6.8 boasts a signal-to-noise ratio of 87dB for power amplification and 85dB for RCA inputs, delivering pristine sound quality.
  • Efficient Power Management: Operate within a wide voltage range of 9-16V, with a static current of just 0.45A and a working current range of 0.5-18A, ensuring efficiency and reliability.

LCD Remote DSP Controller ( Optional- To Be Purchased Separately): Select source selection, FF/RW Tracks, Change mode are some of function which can be operated through the remote controller..


Illuminate your audio journey with the Aura Fireball-6.8 DSP Amplifier and immerse yourself in a world of unparalleled sound quality and performance. Experience the future of audio technology today.

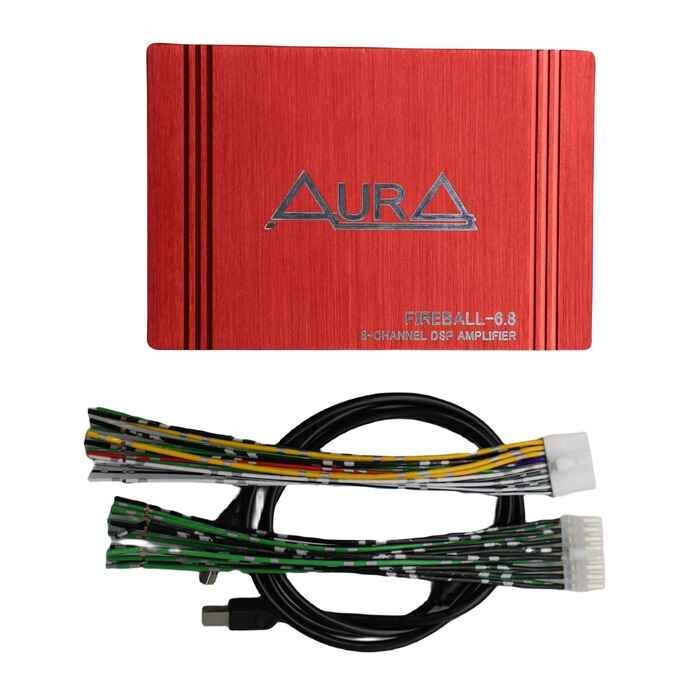

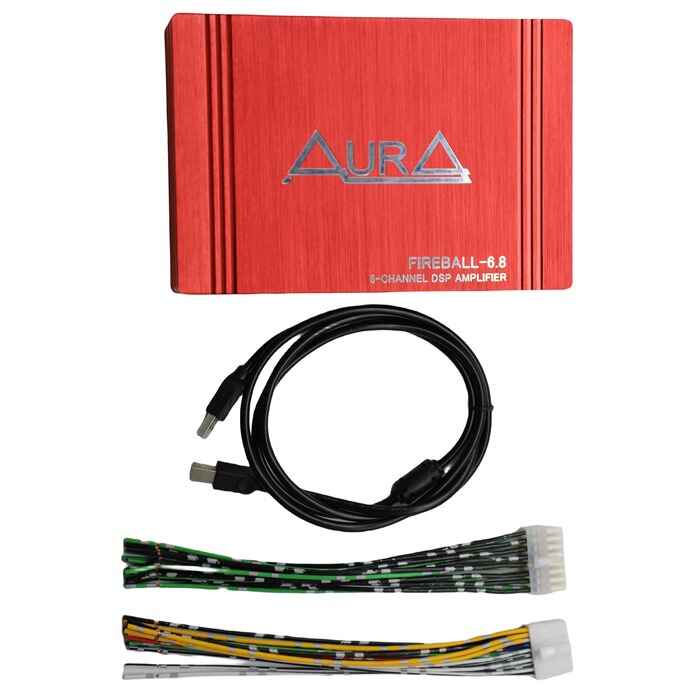

Accessories

  • DSP Amplifier – 1 No
  • Wiring Harness – 2 No
  • PC USB Cable – 1 No
  • Instruction Manual – 1 No
  • External wiring controller(purchased separately) – 1 No
AUDIO
RMS Power: 25W RMS * 8CH @40HMS : 50W RMS* 8CH@ 20HMS
Frequency Response: 20Hz~20kHz
DSP Processor: Cirrus Logic
Signal Converter A/D : Cirrus Logic
Signal Converter D/A: Cirrus Logic
Bluetooth : Built in Bluetooth 5.1

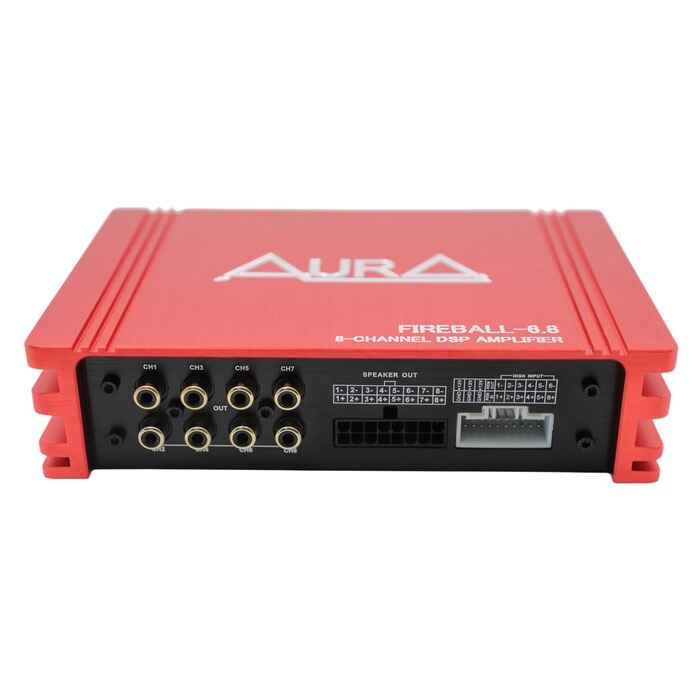

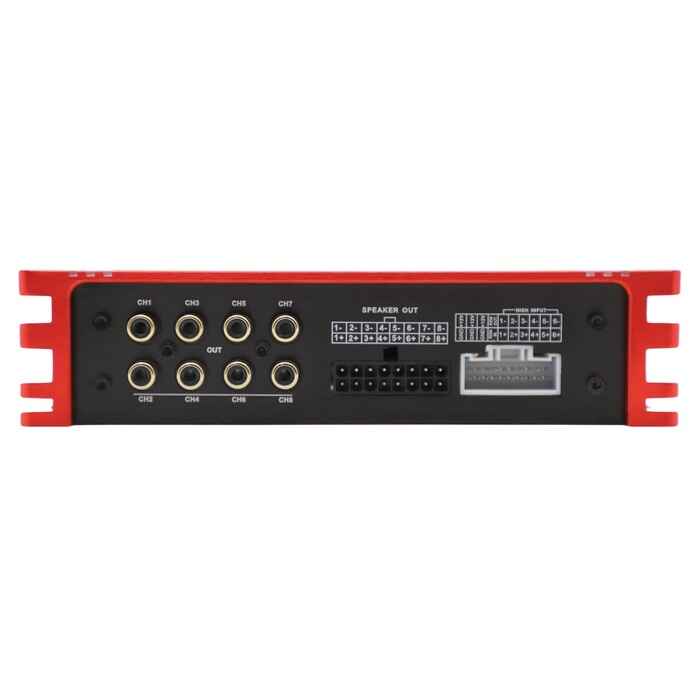

INPUT AND OUTPUT
High level speaker input: 6CH
Low level AUX input: 2CH
High level speaker output: 8CH
Low Level RCA Output 8CH
DSP RCA output: 8CH (RMS 2V)
High input impedance: 13 Ω
Low input sensitivity: 0.5-2.5V
High input sensitivity: 4-10V
Optical Input: Yes
Sampling Rate: 24Bit/192KHz ADC/DAC
EQ/Delay: 31Band EQ/15ms
Filtering Crossing Point: 20-20KHz
GENERAL REQUIREMENTS – PC Software
PC connections: USB 2.0
Software/PC requirements: Microsoft Window (32/64bit): (XP, Vista, Windows 7, Windows 8, Windows 10)
Operate temperature range: -30~70?
Size: 195(L)x131(W)x46.5(H)mm
Weight (Kgs) 1.3 Kgs
Name
Download
Instruction Manual - FIREBALL-6.8
PC Application- Aura Fireball-6.8 DSP v1.11.exe
Aura Fireball-6.8 DSP Firmware Upgrade Procedure
