FIREBALL-6.8 MKII
8-Channel DSP Amplifier
Disclaimer: To optimize performance and user experience, Enigma DSP units should be updated with the latest PC software, a factory reset should be done, and the devices should be used for the first time only after the reset. Not performing the reset and using the device right away may result in the device performing some functions badly or in a way that sticks to minimal capabilities. These steps must be completed before proceeding to the setup.
.png)

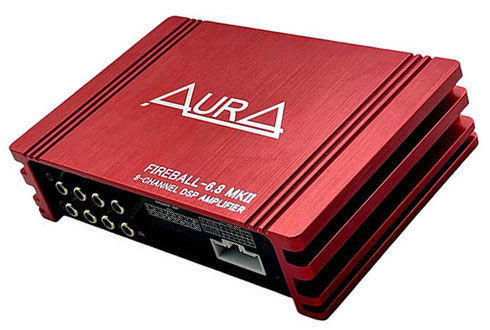

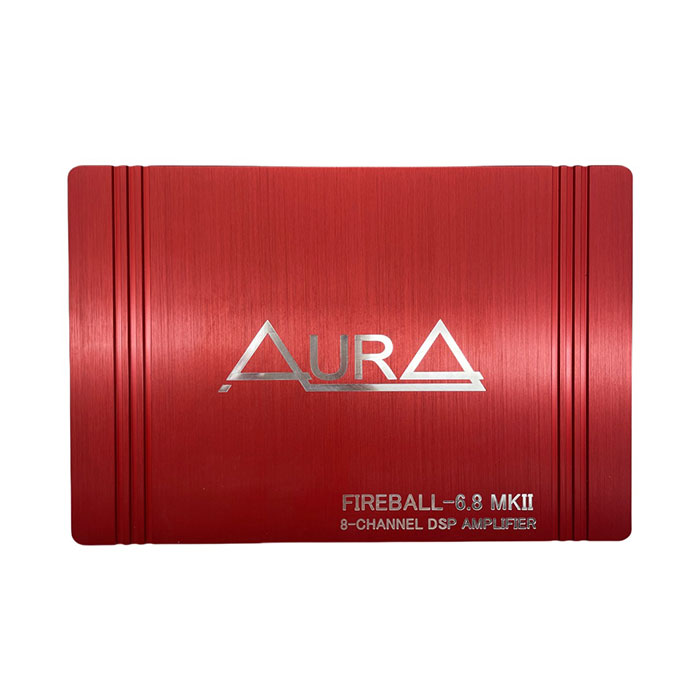

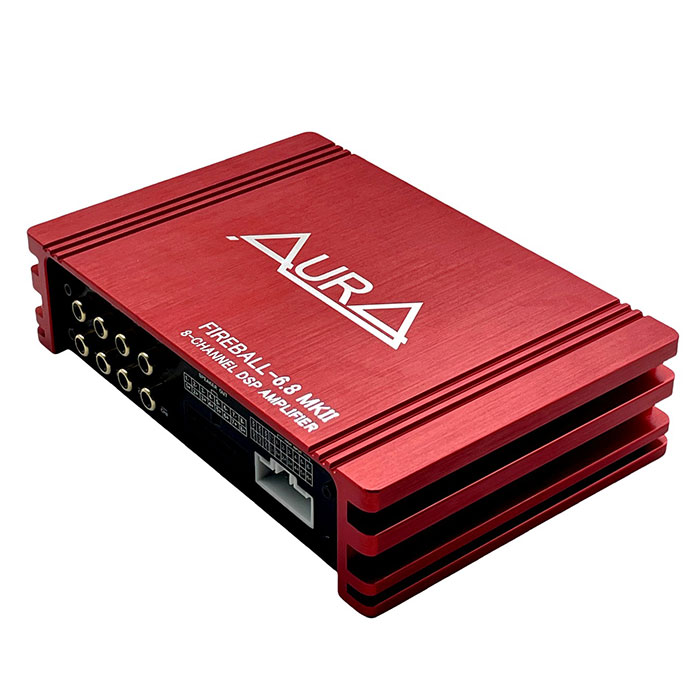

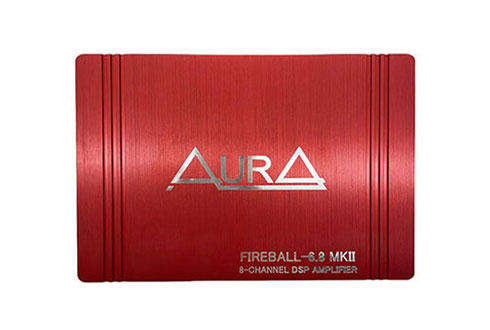

Introducing the Aura FIREBALL-6.8 MKII : Experience the Future of Sound Engineering
Elevate your audio experience with the Aura FIREBALL-6.8 MKII Amplifier, where cutting-edge technology meets unparalleled performance. Designed to meet the demands of audiophiles and professionals alike, this DSP amplifier redefines excellence in sound engineering.
Advanced Connectivity Options

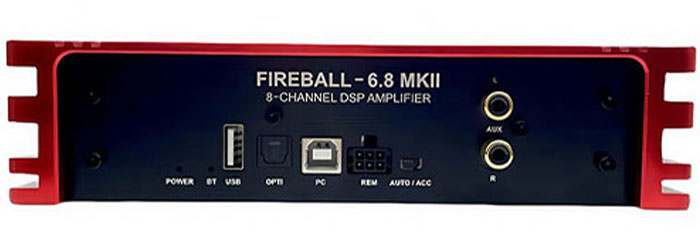

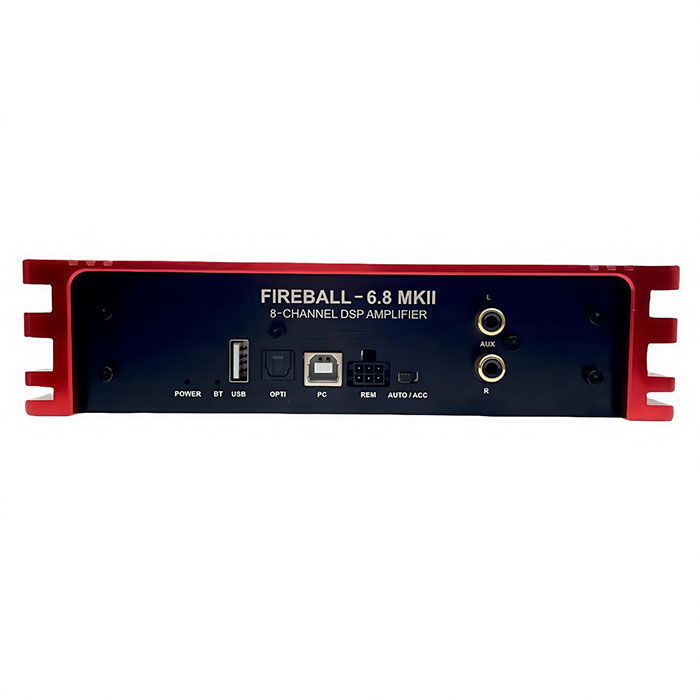

- Versatile Inputs: With 6 High Level inputs, 2 RCA inputs, Optical input, Bluetooth, and USB connectivity, the Fireball-6.8 ensures compatibility with a wide range of devices, from traditional audio sources to modern digital platforms.
- Precise Input Voltage Management: Experience optimal signal reception with input voltage ranging from 0.5V to 10V for High Level inputs and 0.5V to 5V for RCA inputs.

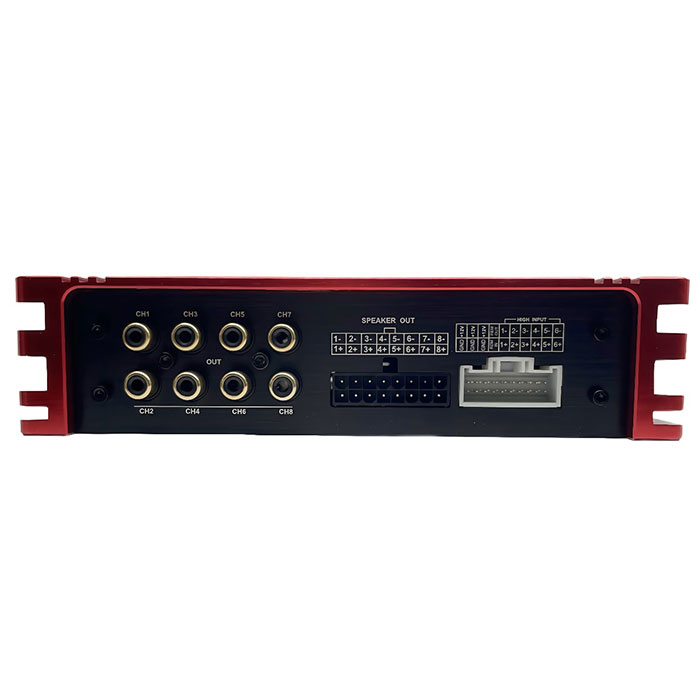

Exceptional Output Capabilities

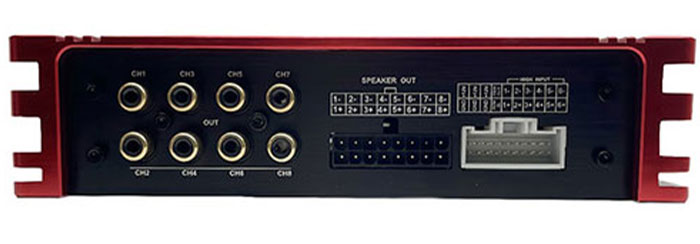

- Powerful Output: Delivering unparalleled performance, the Fireball-6.8 offers 8 High Level outputs and 8 RCA outputs, capable of handling up to -10Vrms on the amplifier output and 2Vrms on RCA outputs.
- High-Fidelity Amplification: Utilizing Class AB amplifier technology, this amplifier provides a robust power output of 8x25W @ 4 OHMS and 8x50W @ 2 OHMS, ensuring crystal-clear sound reproduction.
State-of-the-Art Signal Processing
- Intelligent Signal Conversion: Equipped with Cirrus Logic Smart HiFi 3-core DSP, the Fireball-6.8 ensures precise AD & DA signal conversion, maintaining fidelity at every stage of audio processing.
- Enhanced Sampling Rate: Experience audio in its purest form with a sampling rate of 24Bit/192KHz ADC/DAC, delivering unparalleled clarity and detail.
Customizable Audio Control
- Fine-Tuned Equalization: Tailor your audio experience with a 31-band EQ and 15ms delay, offering precise control over frequency response and time alignment.
- Flexible Filtering Options: Choose from Butter, Bessel, and Link filters with adjustable crossover points and slopes, ranging from 6dB/oct to 48dB/oct.
Seamless Integration and Control
- Intuitive User Interface: Seamlessly navigate settings and presets with the Aura Fireball-6.8 PC software, Android, and iOS apps, adorned with our brand logo for easy identification.
PC SOFTWARE/IOS & ANDROID APP- 31-Band EQ/X-Over/Master Volume Control/ Time Delay
Aura PC Software and Mobile App Logo
- Effortless Bluetooth Connectivity: Stream your favourite music wirelessly with Bluetooth 5.1, ensuring stable connections and high-quality audio playback.
Reliability and Convenience
- Robust Construction: Engineered with high-quality components, the Fireball-6.8 boasts a signal-to-noise ratio of 87dB for power amplification and 85dB for RCA inputs, delivering pristine sound quality.
- Efficient Power Management: Operate within a wide voltage range of 9-16V, with a static current of just 0.45A and a working current range of 0.5-18A, ensuring efficiency and reliability.
LCD Remote DSP Controller ( Optional- To Be Purchased Separately): Select source selection, FF/RW Tracks, Change mode are some of function which can be operated through the remote controller..
Illuminate your audio journey with the Aura Fireball-6.8 DSP Amplifier and immerse yourself in a world of unparalleled sound quality and performance. Experience the future of audio technology today.
Accessories
- DSP Amplifier – 1 No
- Wiring Harness – 2 No
- PC USB Cable – 1 No
- Instruction Manual – 1 No
- External wiring controller(purchased separately) – 1 No
| AUDIO | |
|---|---|
| RMS Power: | 25W RMS * 8CH @40HMS : 50W RMS* 8CH@ 20HMS |
| Frequency Response: | 20Hz~20kHz |
| DSP Processor: | Cirrus Logic |
| Signal Converter A/D : | Cirrus Logic |
| Signal Converter D/A: | Cirrus Logic |
| Bluetooth : | Built in Bluetooth 5.1 |
| INPUT AND OUTPUT | |
| High level speaker input: | 6CH |
| Low level AUX input: | 2CH |
| High level speaker output: | 8CH |
| Low Level RCA Output | 8CH |
| DSP RCA output: | 8CH (RMS 4V) |
| High input impedance: | 13 Ω |
| Low input sensitivity: | 0.5-2.5V |
| High input sensitivity: | 4-10V |
| Optical Input: | Yes |
| Sampling Rate: | 24Bit/192KHz ADC/DAC |
| EQ/Delay: | 31Band EQ/15ms |
| Filtering Crossing Point: | 20-20KHz |
| GENERAL REQUIREMENTS – PC Software | |
| PC connections: | USB 2.0 |
| Software/PC requirements: | Microsoft Window (32/64bit): (XP, Vista, Windows 7, Windows 8, Windows 10) |
| Operate temperature range: | -30~70? |
| Size: | 195(L)x131(W)x46.5(H)mm |
| Weight (Kgs) | 1.3 Kgs |
