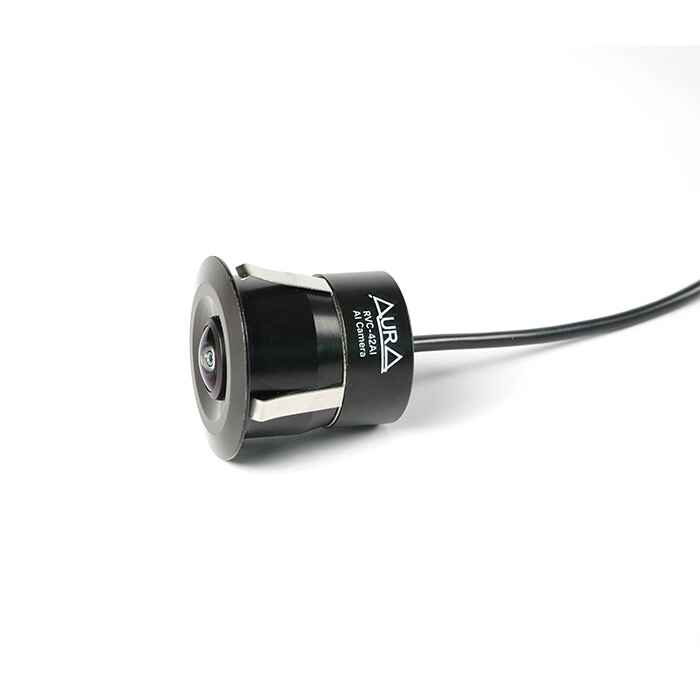

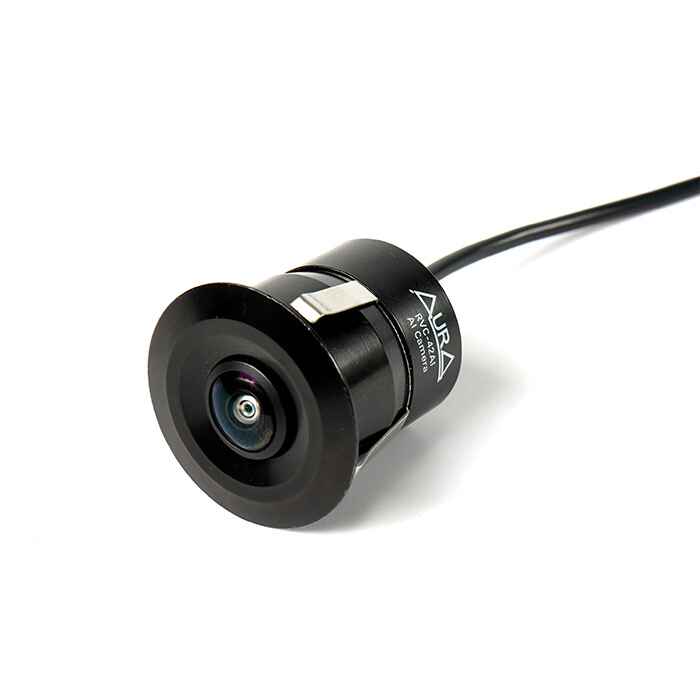

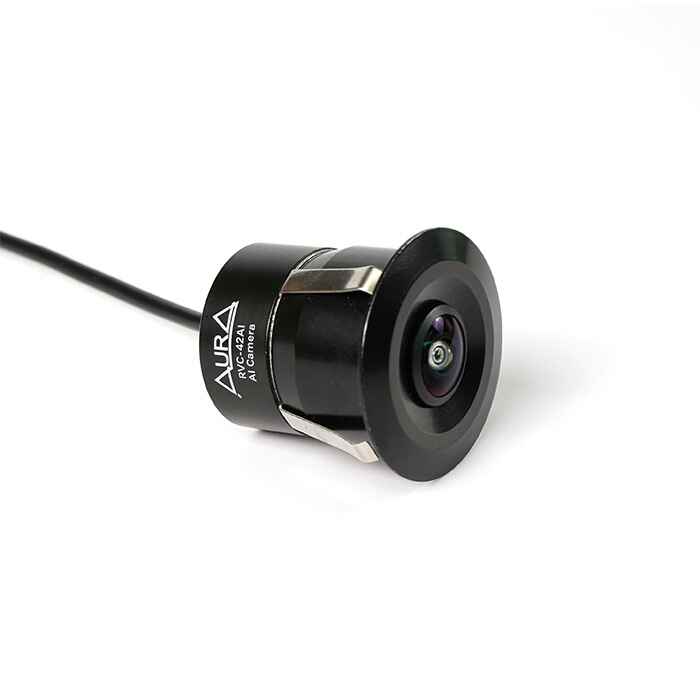

• RVC-42AI
  • Artificial Intelligence Camera

To prevent injury or fire, take the following precautions

Installation and wiring of this product require specialist skill and experience

To prevent damage to the product, take thefo

Make sure to ground the unit to a negative 12V DC power supply


  • A Rear-view camera is a camera that provides symmetrical images in the same way as rear and side view mirrors
  • Connection to a TV with an RCA video input is possible, but confirm whether the TV you use has a reverse gear connection funct
  • This Camera features a wide-angle lens, so the near view is wide and the far view is narrow, which may create a false s
  • Check camera bracket installation before driving. Are the screws loose? - Is the camera bracket firmly secured? - If the rear-vi ew camera comes loose while you are driving it may cause an accident
  • Before finally installing the unit, connect the wiring temporarily, making sure it is all connected up properly, and
  • When mounting this unit, make sure none of the leads are trapped between this unit and the surrounding metalwork or fitti

Installation Procedure

  • To prevent a short circuit, remove the key from theignition and disconnect the battery
  • Make the proper input and output wire connections for each unit
  • Connect the wiring harness wires in the followingorder: ground, ignition and camera unit
  • Install the unit in your car.
  • Reconnect the bat
Vertical: 80°Rear view Working Voltage 12VAssurance Temperature
Item Description
Image Sensor 1/3“ CMOS
Output formats PAL
Effective pixel array 1920(H) x1080(V)
Resolution 2.0MP
Frame rate 1080P@25fps
Video amplitude 1.0VPP@75Ω
White balance Auto
Video Signal AHD
Gain Control Auto
Gamma correction 0.45
View Angle Horizontal: 140°
View AngleImage Character
Working Current 89mA
Working Voltage Range 4.8~5VDC
Working Temperature -20~+70?
Storage Temperature -30~+75?
Image Quality -20~+65 ?
Environment Humidity 90%RH
Waterproof Grade IP67(Camera Part)
Instruction Manual -RVC-42AI
