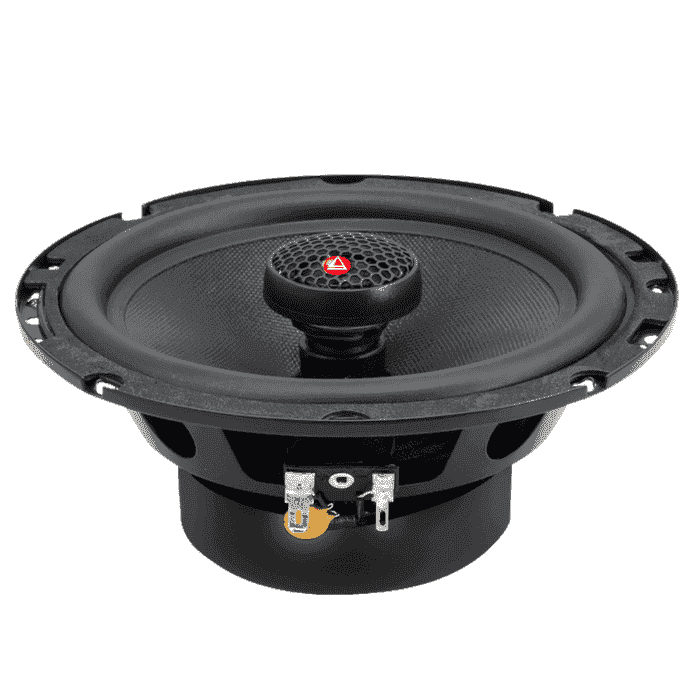

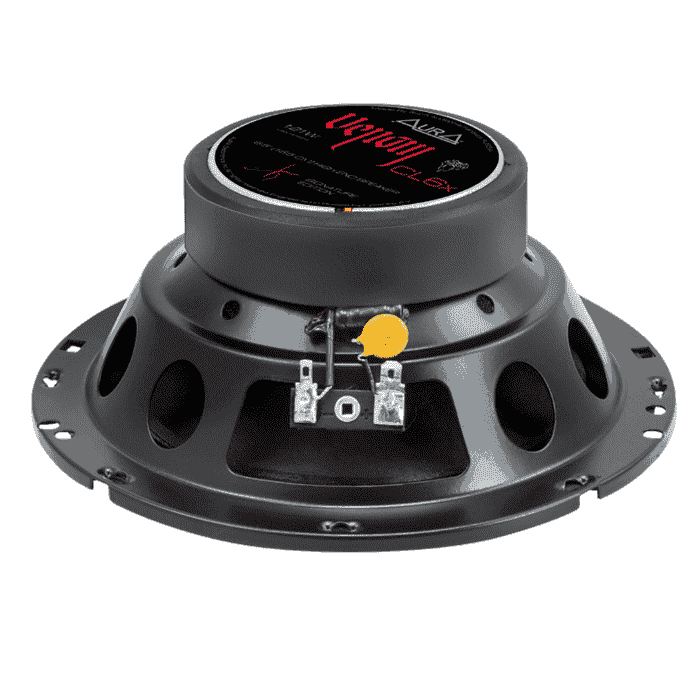

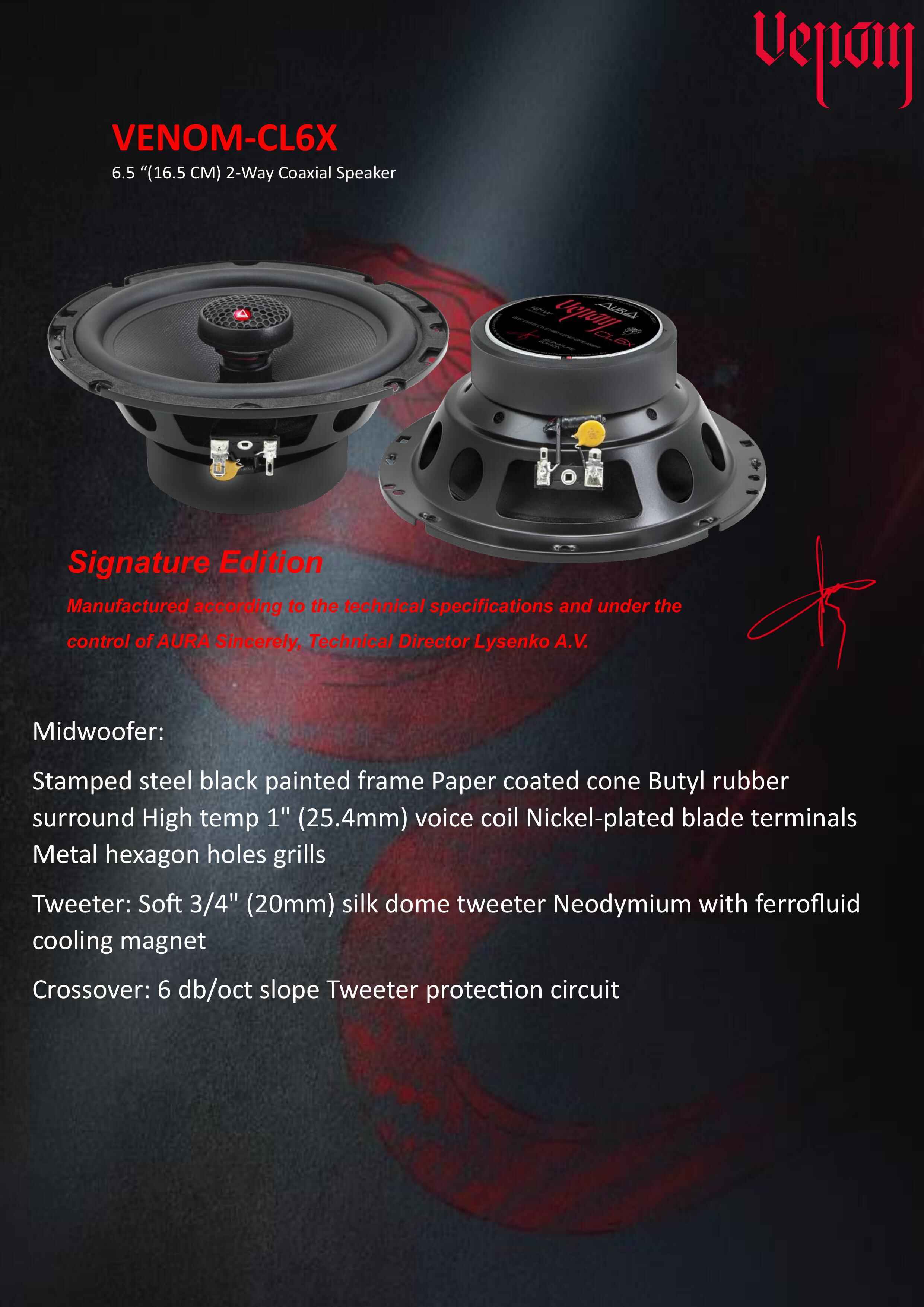

- Type: 2-Way Coaxial Speaker
- Speaker Size: 6.5 " ( 16.5 CM)
- Speaker Diameter: 165mm
- Speaker Type: Woofer
- Normal Output Power (RMS): 71W
- Nominal Power: 121W
- Frequency Response: 6-20000Khz
- Sensitivity: 90.4±2dB Max ( 1M/1W)
- Impedance: 4 Ohms
- Cone Material: Paper Coated Cone
- Surround: Butyl Rubber
- Phase Plug: No
- Voice Coil Diameter: ASVΦ25.4mm
- Magnet Mass: Stamped Steel Frame
- Size: 166mmx166mmx69mm
- Tweeter Specifications
- Size: 20mm
- Type: Silk Dome
- Nominal Impedance: 4 ohms
- Magnet: Neodymium with Ferro Fluid Magnet
- Rated Power RMS: 50W
- Maximum Power: 121W
- Crossover Specifications
- Size: Tweeter protection circuit
- Slope: 12dB/Octave Slope
