VENOM-D1600

VENOM-D1600

Mono D-class Amplifier

  • STABLE INTO 1 OHM LOAD
  • HIGH SPEED MOSFET POWER SUPPLY
  • 12dB/OCT VARIABLE CROSSOVER
  • VARIABLE LOW PASS FILTER
  • VARIABLE SUBSONIC FILTER
  • 0dB / 12dB SELECTABLE BASS BOOST
  • REMOTE CONTROL
  • COMPACT DESIGN

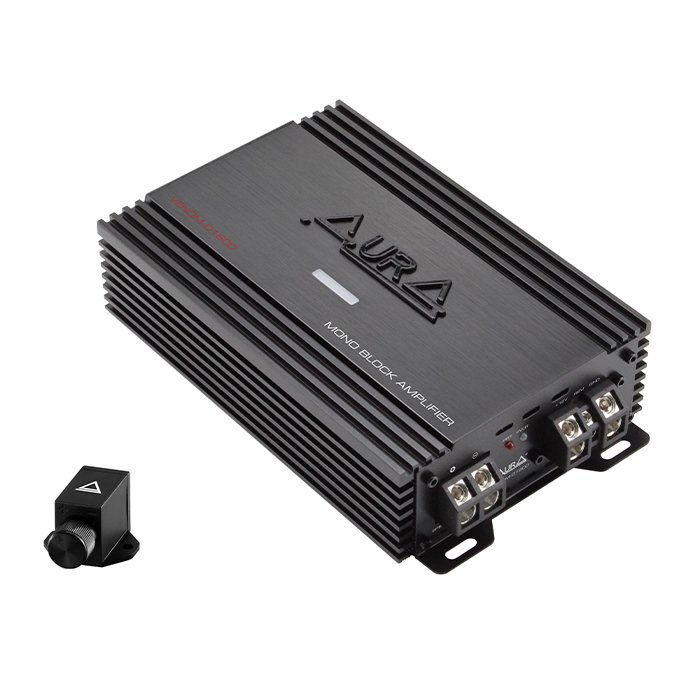

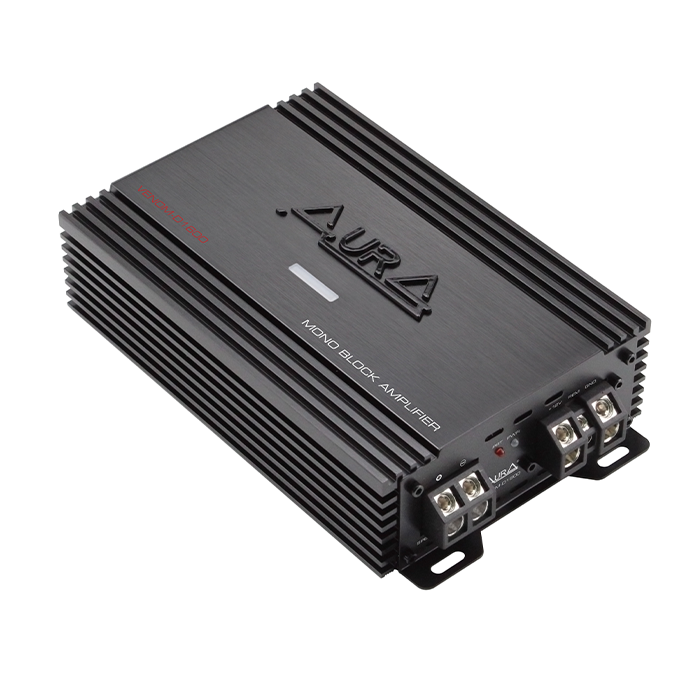

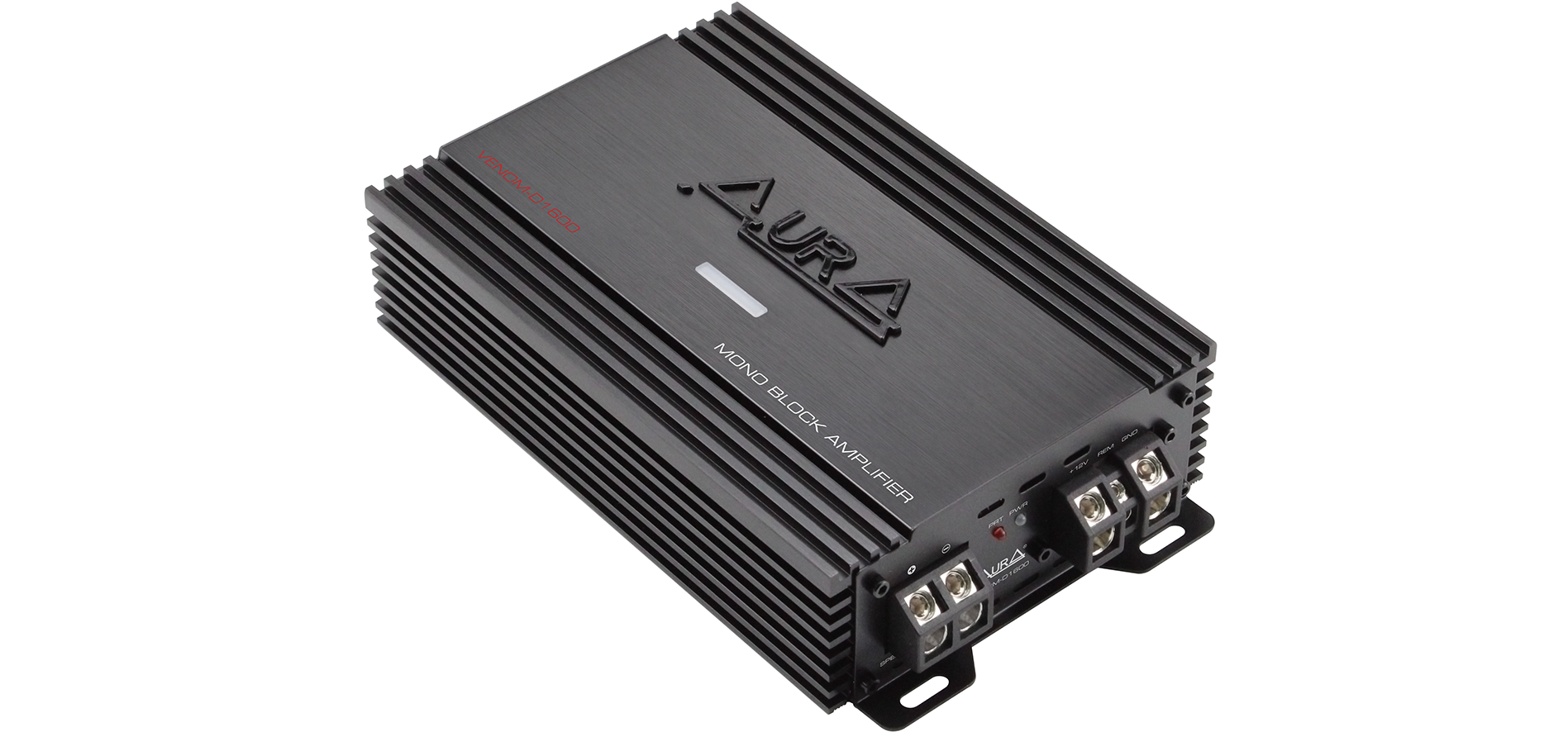

Aura Venom-D1600 – Mono D-Class Amplifier

Unleash Raw Power with Precision and Control

Looking to push your subwoofers to the limit? The Aura Venom-D1600 is a powerhouse D-Class mono amplifier built for serious bass lovers. Designed for clean, efficient, and thunderous performance, this amplifier delivers up to 1600W RMS of raw power with precision and stability – all while staying cool and compact.

Performance That Hits Hard

  • 1600W x 1 @ 1Ω – Pure, stable power at maximum load
  • 1100W x 1 @ 2Ω – Powerful and balanced output
  • 700W x 1 @ 4Ω – Clean power with ultra-low distortion

No matter your setup, the Venom-D1600 delivers consistent performance with <1% THD to keep your bass tight, clean, and distortion-free.

Smart Tuning & Control

Take full control of your sound with customizable tuning features:

  • Low Pass Filter: 40Hz – 20kHz
  • High Pass Filter: 10Hz – 3kHz
  • Bass Boost Function: Extra punch when you need it
  • 12dB Crossover Slope: Smooth and controlled transitions
  • Bass Remote Controller: Adjust bass levels on the fly

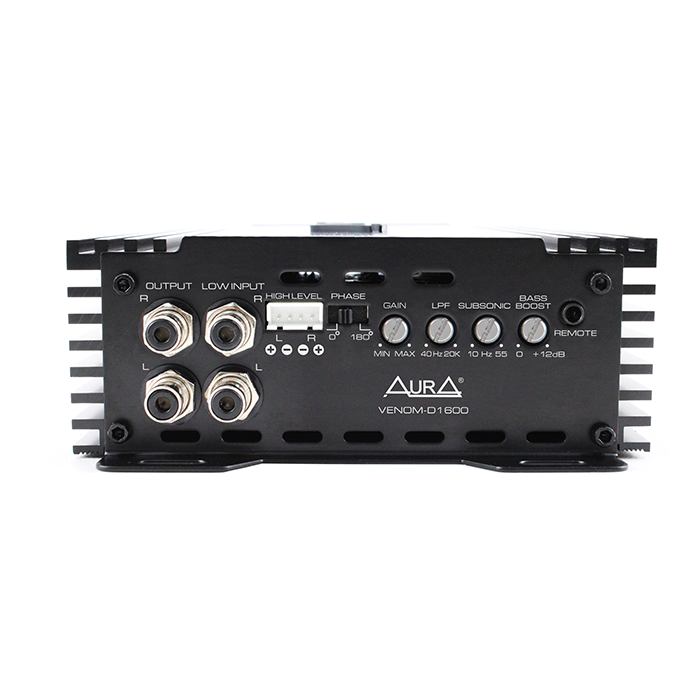

Flexible Input Options

Connect your system your way:

  • RCA Unbalanced Input – High-quality Tiffany-style connectors
  • High-Level Input – Perfect for factory systems
  • Remote Turn-On (REM) – Seamless integration with your head unit
  • Input Sensitivity: 0.2V – 6V for wide compatibility


Built for Real-World Demands

  • 4-Layer PCB with 1oz Copper – Superior heat management and signal stability
  • Protection Circuitry – Automatically guards against high/low voltage (8V–16V)
  • Power/Protect LED Indicators – Always know your system status
  • Signal-to-Noise Ratio: >90dB – Hear your music, not the noise
  • Idle Current: 0mA – Ultra-efficient power draw when not in use

Why Choose Aura Venom-D1600?

If you're looking to add deep, powerful bass to your audio system without sacrificing clarity or reliability, the Venom-D1600 is your perfect match. It’s built for performance, loaded with features, and engineered to bring your music to life – loud, clean, and powerful.

Ready to feel the bass?

The Aura Venom-D1600 is your next step toward building a system that doesn’t just play music – it moves you.

SpecificationDetails
Model VENOM-D1600
RMS Power @ 4 ohm 700 W x 1
RMS Power @ 2 ohm 1100 W x 1
RMS Power @ 1 ohm 1600 W x 1
Working Impedance 1 ohm stable
Input Sensitivity 6 V - 0.2 V
Low Pass Filter 40 Hz - 20 KHz
Subsonic Filter 10 - 55 Hz
Bass Boost 0 - 12 dB
Frequency Response 20 Hz - 20 KHz
Signal to Noise Ratio >90 dB
THD @ 4 ohm < 0.1%
Damping Factor >150
Working Voltage 8 V - 16 V
Dimensions (Inches) 7.8 x 5.28 x 2.05
