VENOM-D1600 24V

VENOM-D1600 24V

Heavy-Duty 1600W Mono D-Class Amplifier

  • STABLE INTO 1 OHM LOAD
  • HIGH SPEED MOSFET POWER SUPPLY
  • 12dB/OCT VARIABLE CROSSOVER
  • VARIABLE LOW PASS FILTER
  • VARIABLE SUBSONIC FILTER
  • 0dB / 12dB SELECTABLE BASS BOOST
  • REMOTE CONTROL
  • COMPACT DESIGN

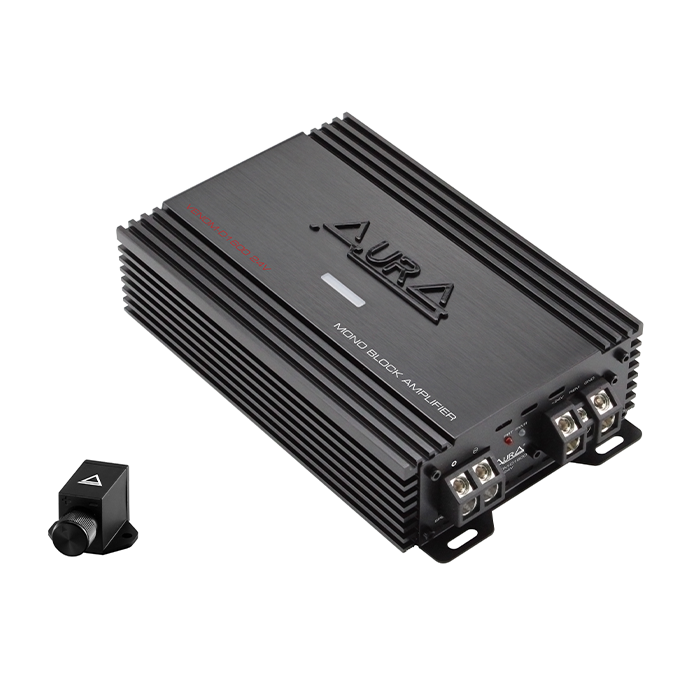

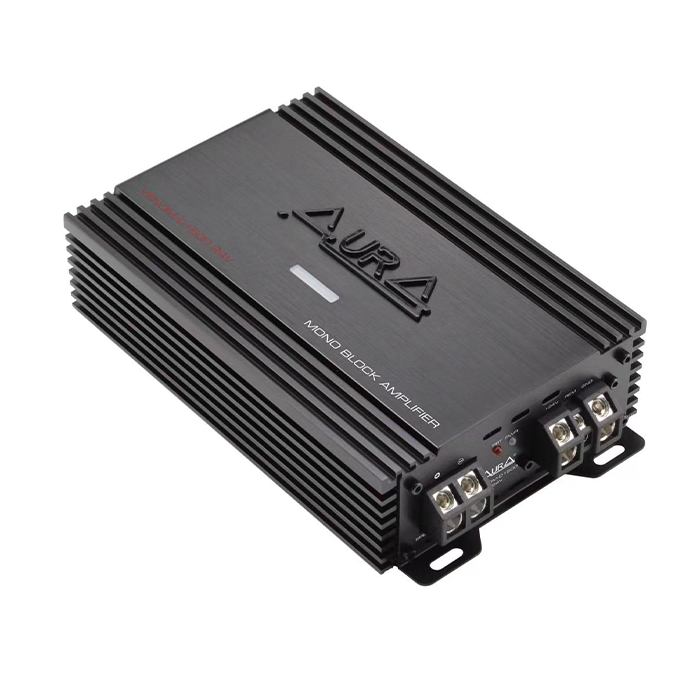

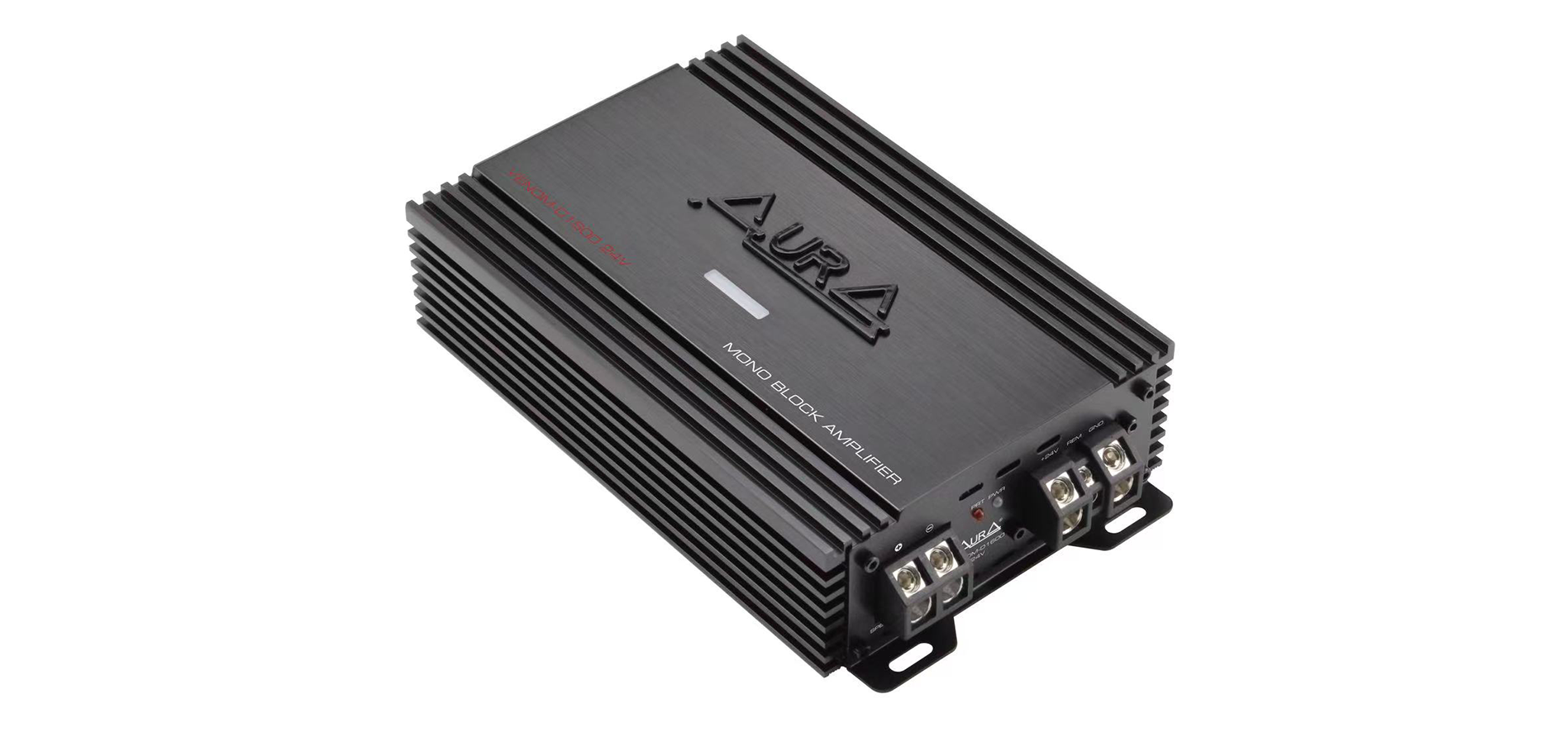

Aura Venom-D1600 24V – Heavy-Duty 1600W Mono D-Class Amplifier

Engineered for Big Rigs. Built for Big Bass.

Take your sound system to the next level with the Aura Venom-D1600 24V, a high-powered mono D-Class amplifier designed specifically for 24V electrical systems. Perfect for commercial vehicles, trucks, or off-road builds, this amplifier delivers up to 1600W RMS of clean, hard-hitting bass performance with unmatched efficiency and reliability.

Maximum Power, Minimum Distortion

  • 1600W x 1 @ 1Ω – Peak performance for serious subwoofers
  • 1100W x 1 @ 2Ω – Balanced power with stability
  • 700W x 1 @ 4Ω – Clean, controlled output for daily driving
  • Total Harmonic Distortion (THD): <1% – Pure sound without compromise

Whether you're building a show system or need serious low-end punch on the road, the Venom-D1600 24V delivers consistent, reliable performance on any setup.

Precision Audio Tuning

Fine-tune your bass exactly how you want it:

  • Low Pass Filter: Adjustable from 40Hz – 20kHz
  • High Pass Filter: Adjustable from 10Hz – 3kHz
  • 12dB Crossover Slope: Smooth frequency roll-off
  • Bass Boost: Extra depth when you need it
  • Included Bass Remote Controller: Make quick adjustments from the driver’s seat

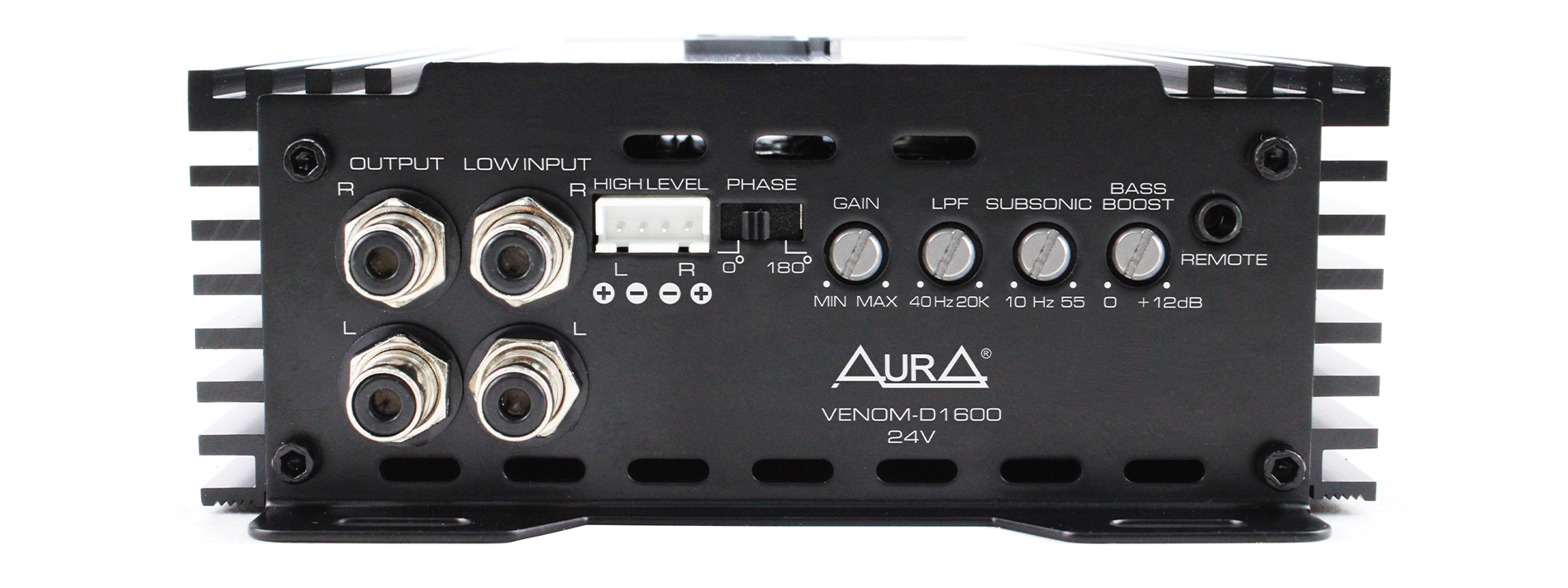

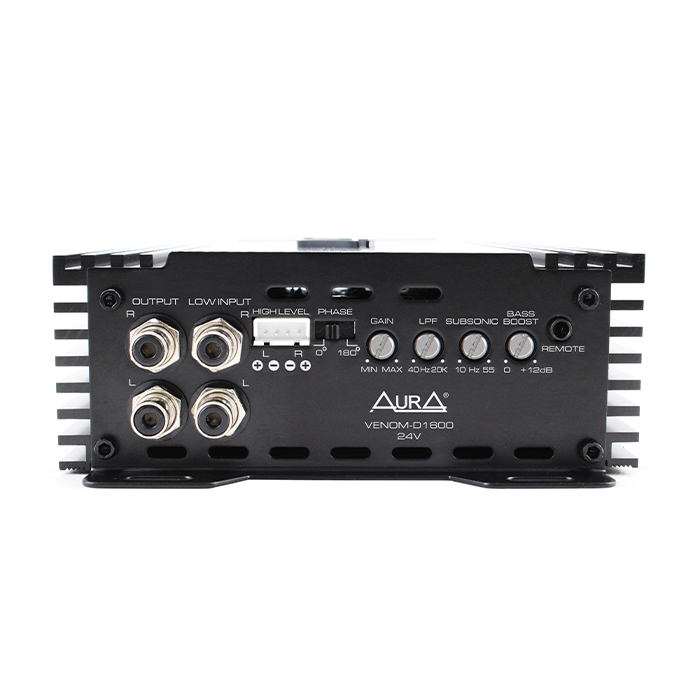

Smart Integration for Any System

  • Unbalanced RCA Inputs – With high-end Tiffany-style connectors
  • High-Level Input – Easily connect to factory audio systems
  • Remote Turn-On (REM) – Clean power control from your head unit
  • Input Sensitivity: 0.2V – 6V for wide system compatibility

Built to Withstand the Road

  • 4-Layer PCB with 1oz Copper – For better heat dissipation and long-lasting performance
  • Voltage Protection (16V–31V) – Automatically protects against under/overvoltage
  • Working Status LEDs (POWER / PRE) – Monitor system health at a glance
  • Idle Current: 0mA – Power-saving design when not in use
  • Signal-to-Noise Ratio: >90dB – Hear your music, not your wiring

Why Choose the Venom-D1600 24V?

If you're outfitting a truck, bus, or heavy-duty build and need an amplifier that delivers clean, consistent bass power in a 24V environment, the Venom-D1600 24V is your go-to solution. Compact, powerful, and built to last, it's made for demanding applications without sacrificing sound quality or system integrity.

Turn up the volume, not the stress.

With the Aura Venom-D1600 24V, you’re getting pro-grade performance, all-day reliability, and bass that doesn’t back down.

SpecificationDetails
Model VENOM-D1600 24V
RMS Power @ 4 ohm 700 W x 1
RMS Power @ 2 ohm 1100 W x 1
RMS Power @ 1 ohm 1600 W x 1
Working Impedance 1 ohm stable
Input Sensitivity 6 V - 0.2 V
Low Pass Filter 40 Hz - 20 KHz
Subsonic Filter 10 - 55 Hz
Bass Boost 0 - 12 dB
Frequency Response 20 Hz - 20 KHz
Signal to Noise Ratio >90 dB
THD @ 4 ohm < 0.1%
Damping Factor >150
Working Voltage 16 V - 31 V
Dimensions (Inches) 7.8 x 5.28 x 2.05
Name
Download
INSTRUCTION MANUAL - VENOM-D1600 24V
