VENOM-D3300

VENOM-D3300

Intelligent Full-Range Mono D-Class Amplifier

  • STABLE INTO 1 OHM LOAD
  • HIGH SPEED MOSFET POWER SUPPLY
  • 12dB/OCT VARIABLE CROSSOVER
  • VARIABLE LOW PASS FILTER
  • VARIABLE SUBSONIC FILTER
  • 0dB / 12dB SELECTABLE BASS BOOST
  • REMOTE CONTROL
  • COMPACT DESIGN

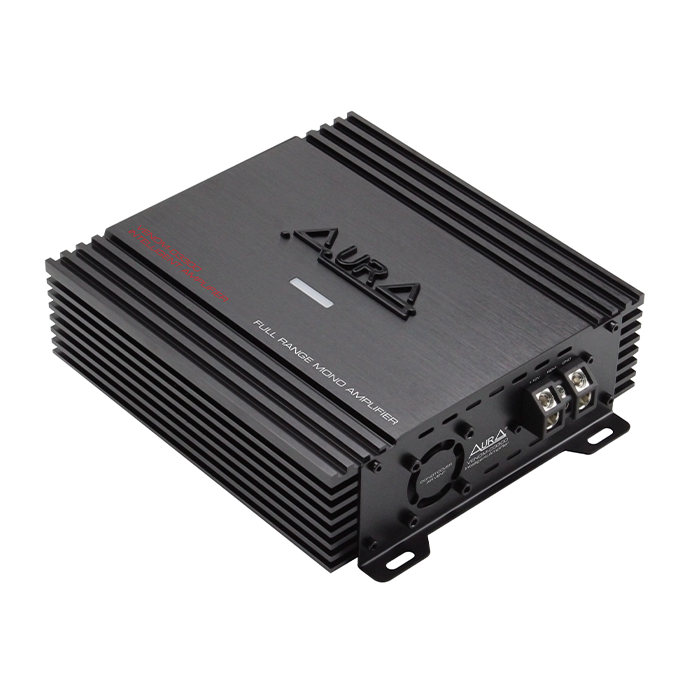

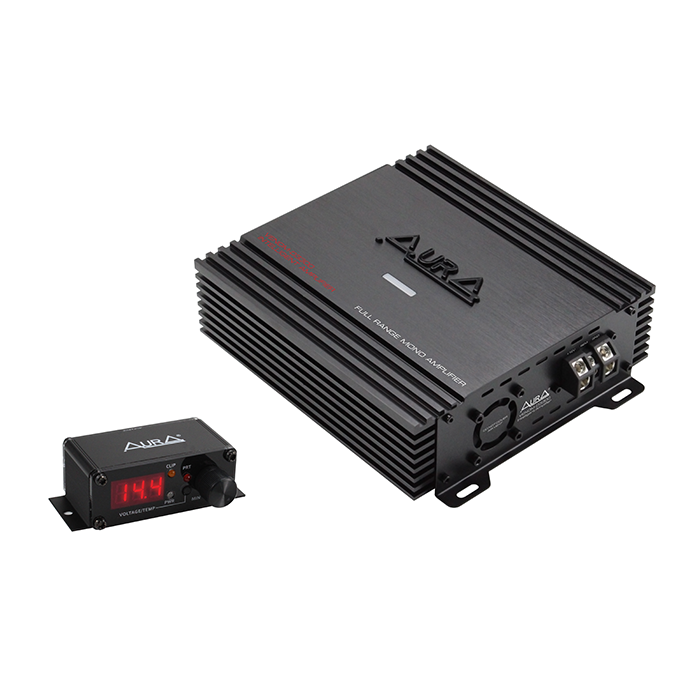

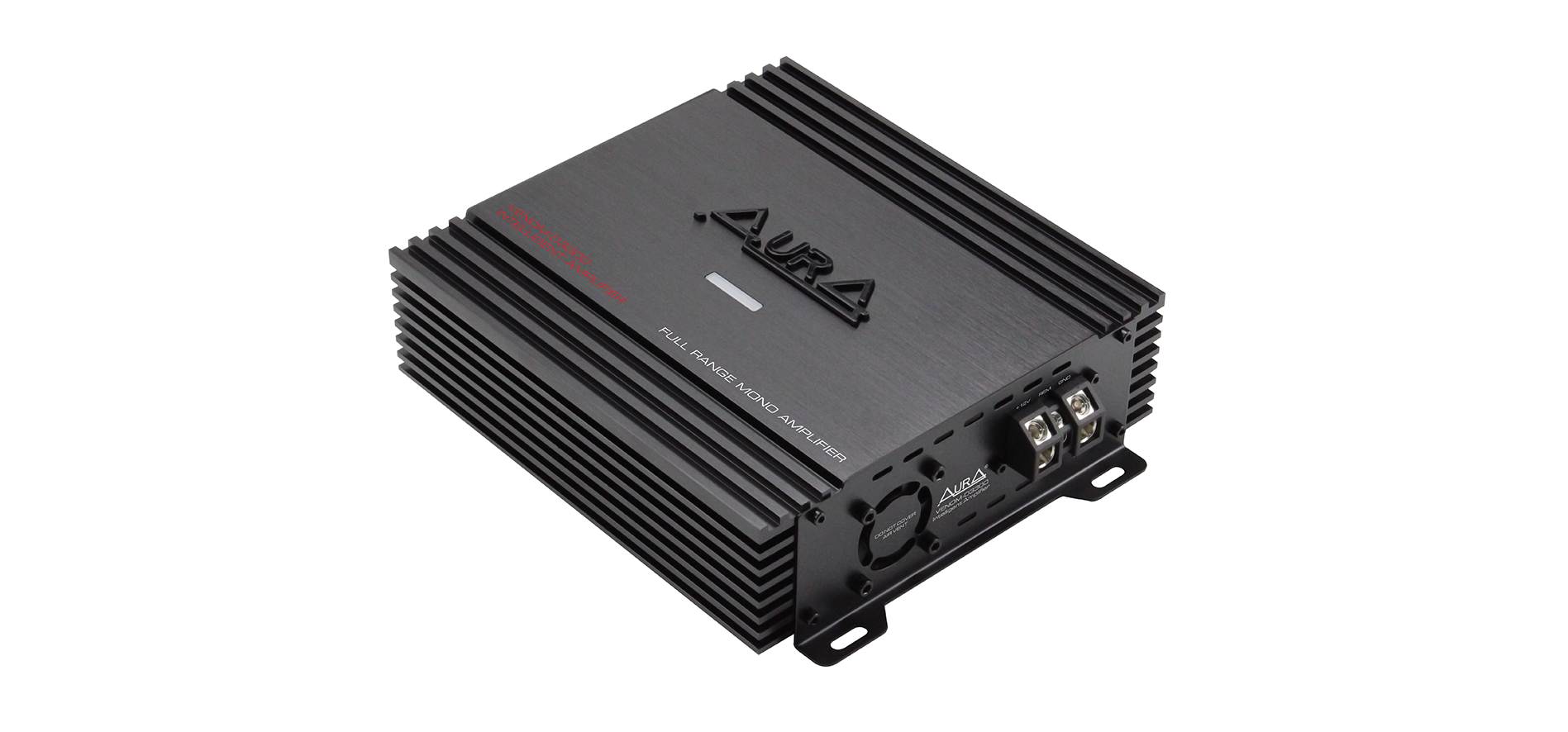

Aura Venom-D3300 – Intelligent Full-Range Mono D-Class Amplifier

Unrivalled Power, Unmatched Clarity. Experience Bass Like Never Before.

Introducing the Aura Venom-D3300, the ultimate mono block amplifier designed for serious audiophiles and professionals who demand nothing but the best. With a massive 3300W RMS output and full-range capabilities, the Venom-D3300 is engineered to deliver exceptional sound quality with jaw-dropping bass, no matter the setup.

Whether you’re powering a subwoofer or driving a custom full-range audio system, this Class D amplifier offers incredible efficiency and low distortion (<1% T.H.D.), making it the perfect choice for those who demand power without compromise.

Blazing Performance with Full-Range Power

  • 3300W RMS @ 1Ω & 2Ω – Unleash devastating power to push even the most demanding subwoofers
  • 2000W RMS @ 4Ω – Clean, stable output for balanced, full-range performance
  • Full-Range Audio Performance – Perfectly suited for both subwoofer systems and full-range setups
  • Total Harmonic Distortion (T.H.D.): <1% – Enjoy clean, distortion-free sound at any volume level

With the Venom-D3300, you get raw, unrelenting power combined with low distortion to keep your system performing at its peak. Whether you’re a car audio enthusiast, a custom builder, or a professional installer, this amplifier will deliver unmatched bass and clarity in every frequency range.

Seamless Integration for Any System

  • Unbalanced RCA Inputs – Premium Tiffany-style connectors for flawless signal integrity
  • High-Level Input: (Not Available) – Ideal for high-quality aftermarket systems

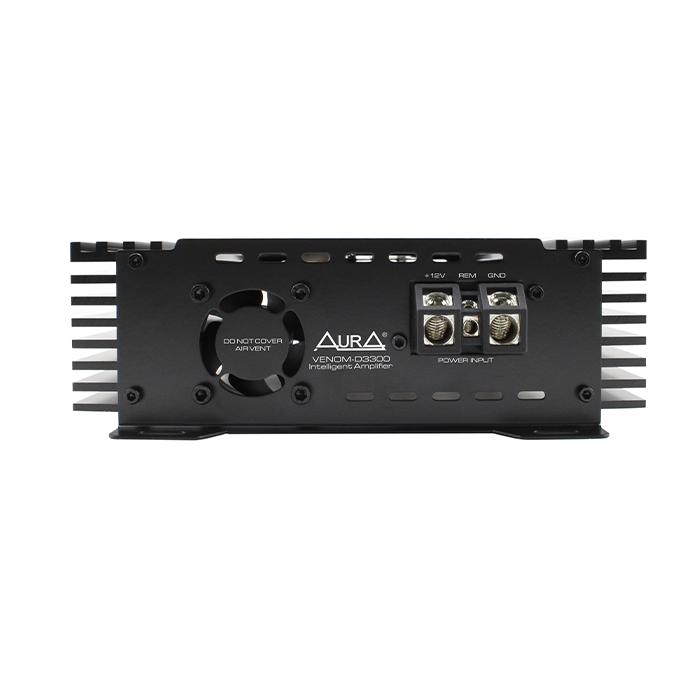

  • Turn-On Trigger (REM) – Convenient activation of the amplifier directly from your head unit
  • Input Sensitivity: 0.4V – 4V for wide-ranging compatibility with a variety of audio sources

Whether you're upgrading a factory system or designing a custom sound rig, the Venom-D3300 integrates seamlessly for both full-range and subwoofer applications.

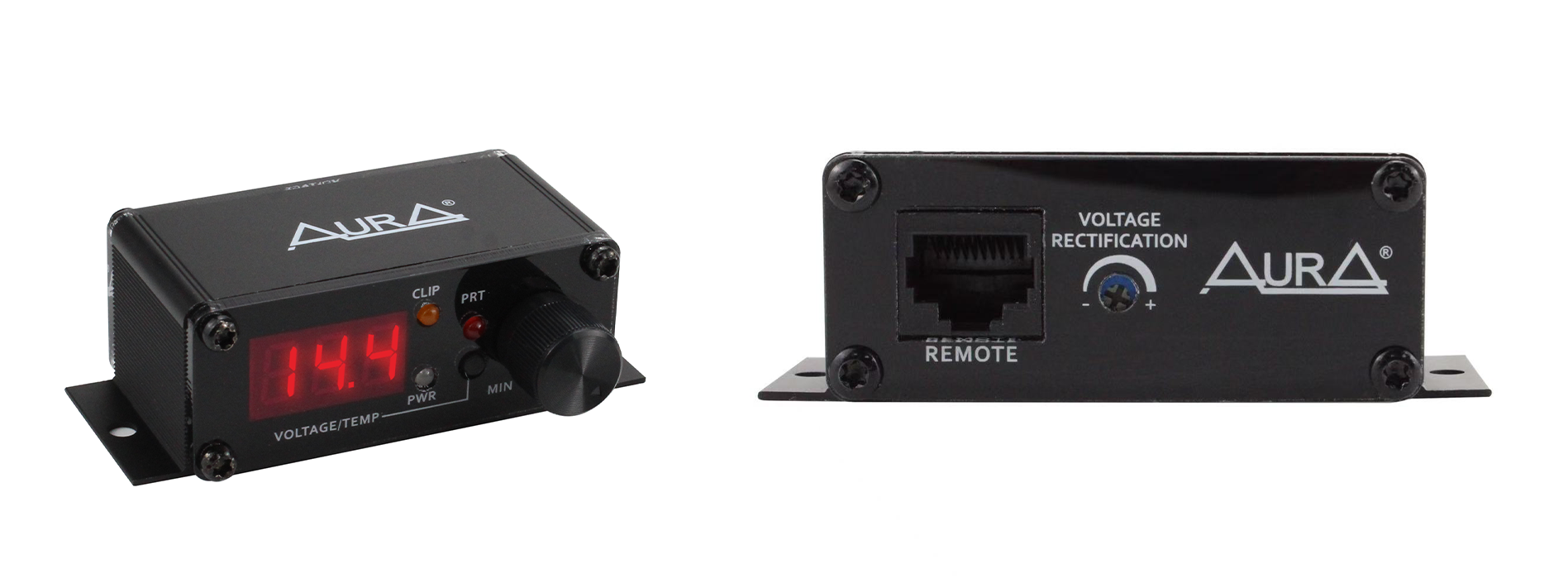

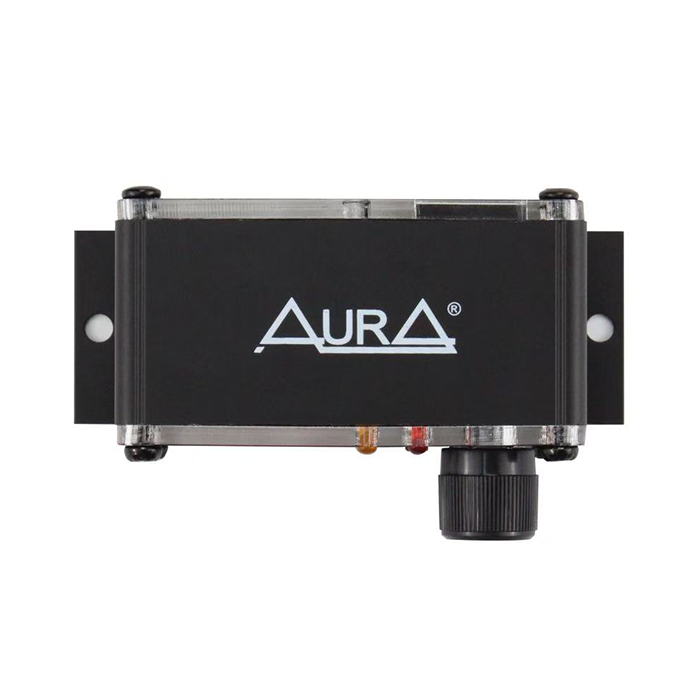

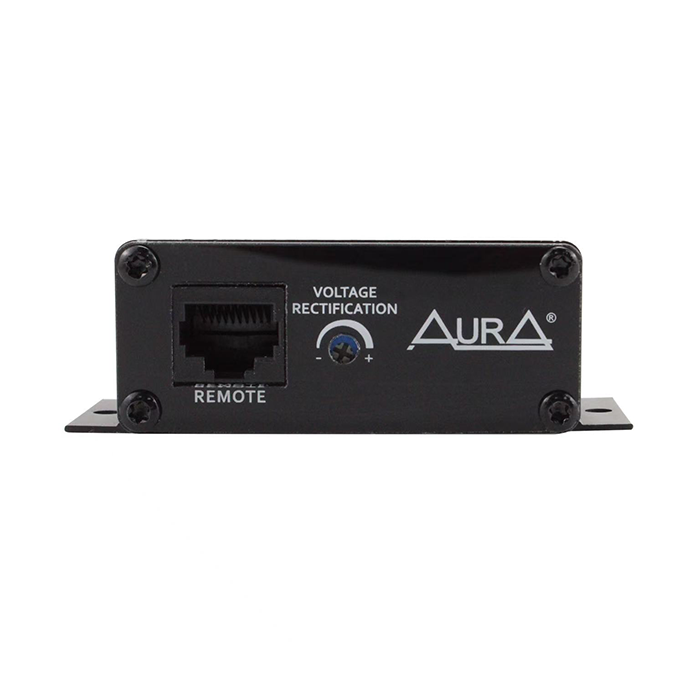

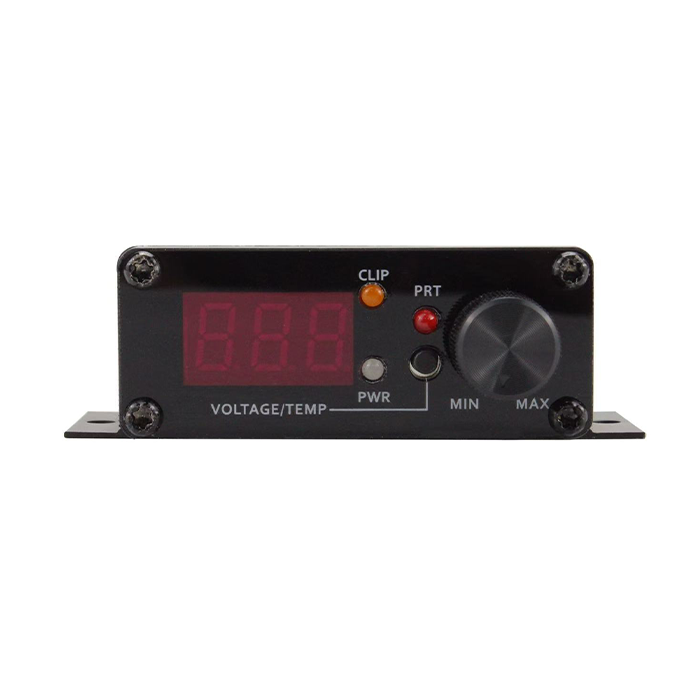

Full Control with 10-Pin LCD Bass Controller

Take command of your system like never before with the 10-Pin LCD Bass Controller, offering real-time insight into your amplifier’s performance:

  • Voltage Display – Monitor the power supply voltage to ensure stable operation
  • Temperature Monitoring – Track the amplifier's temperature to maintain safe operation during high-demand situations
  • Clipping Indicators – Avoid distortion by visualizing clipping levels for optimal sound performance
  • Bass Boost & Crossover Adjustment – Effortlessly fine-tune your bass output and frequency response for your subwoofers and full-range speakers

This LCD controller puts you in total control, ensuring your system is running smoothly and efficiently with every adjustment.

Built for Performance and Durability

  • 4-Layer PCB with 1oz Copper – Excellent heat dissipation and signal stability, built for maximum performance
  • High/Low Voltage Protection (9V-17V) – Ensures reliable operation without damaging your system
  • Extruded Heatsink – Superior heat management, keeping your amplifier cool during long listening sessions
  • Working Status LEDs (POWER/PRE/CLIP) – Stay informed with immediate visual feedback on power, protection mode, and clipping levels

The Venom-D3300 is built to last, with advanced protection features and top-tier heat management to ensure that it operates at optimal levels, no matter the load.

Why Choose the Venom-D3300?

If you’re searching for uncompromising performance, massive power, and full-range audio capability, the Aura Venom-D3300 is your amplifier. Whether you’re building a competition-level car audio system, outfitting a high-end home theatre, or customizing your audio setup, this amplifier has the muscle to push your sound system to its limits — without sacrificing clarity.

The 10-Pin LCD Bass Controller puts critical performance data right at your fingertips, giving you real-time control and visibility into your system’s health, ensuring that it runs smoothly and without distortion.

Feel the Power.

When it comes to serious audio performance, the Aura Venom-D3300 takes centre stage. 3300W RMS, full-range performance, intelligent monitoring, and flawless sound – this amplifier is engineered for audiophiles who demand the very best.

SpecificationDetails
Model VENOM-D3300
RMS power @ 4 ohm 2000 W x 1
RMS power @ 2 ohm 3300 W x 1
RMS power @ 1 ohm 3300 W x 1
Working impedance 1 ohm stable
Input Sensitivity 4V - 0.4 V
Low Pass Filter 40 Hz - 18 KHz
High Pass Filter 10 - 100Hz
Bass Boost 0 - 12 dB
Frequency Response 20Hz - 20KHz
Signal to Noise Ratio >90 dB
THD @ 4ohm < 0.1%
Damping Factor >150
Working voltage 9 V - 17 V
Dimensions Inches (L x W x H) 7.79 x 7.52 x 2.48
Name
Download
INSTRUCTION MANUAL - VENOM-D3300
