AMV-2032T5

AMV-2032T5

Android Multimedia Receiver
  • Aura Android Multimedia Receiver with Short back 1-DIN with 9” IPS Capacitive screen with TLINK/DSP/Time Alignment/MOSFET AMP/2GB RAM/32GM ROM/Wi Fi/BT/Mirroring/32 Band EQ/360 Degree Camera ready/3 RCA OUT/2 Video out for External Rear Seat Monitor/Front/Rear View Camera IN***/2 USB SLOT.Read More

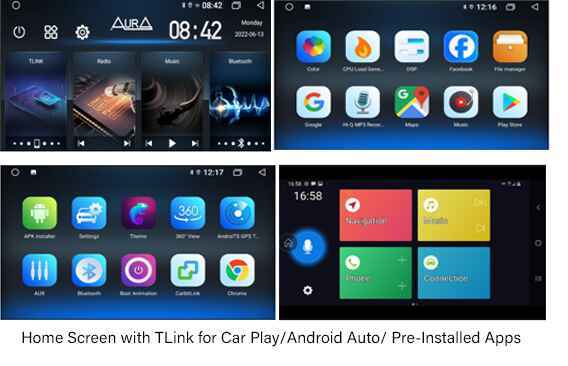

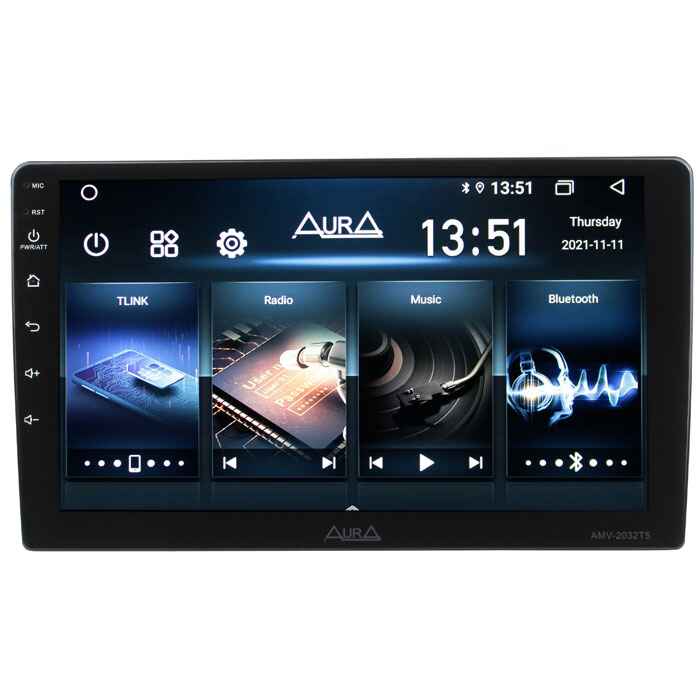

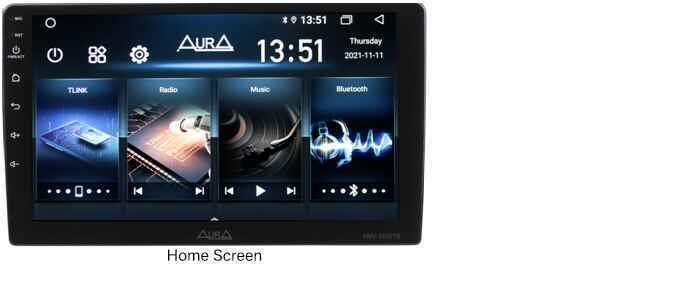

  • The Aura Android Multimedia receiver model AMV-2032T5 is a unique and feature packed model. It has short 1-DIN body back panel for better heat dissipation and continuous sound performance, long life and ease of connectivity to expand your sound system. The Aura Android Multimedia receiver uses high grade component such as Amp IC, DSP Chip, genuine RAM/ROM, HD resolution screen Etc. The unit has customized home screen for easy access to different source such as TLink for Car play/Android Auto, Music from USB, Radio(Tuner) and Bluetooth.

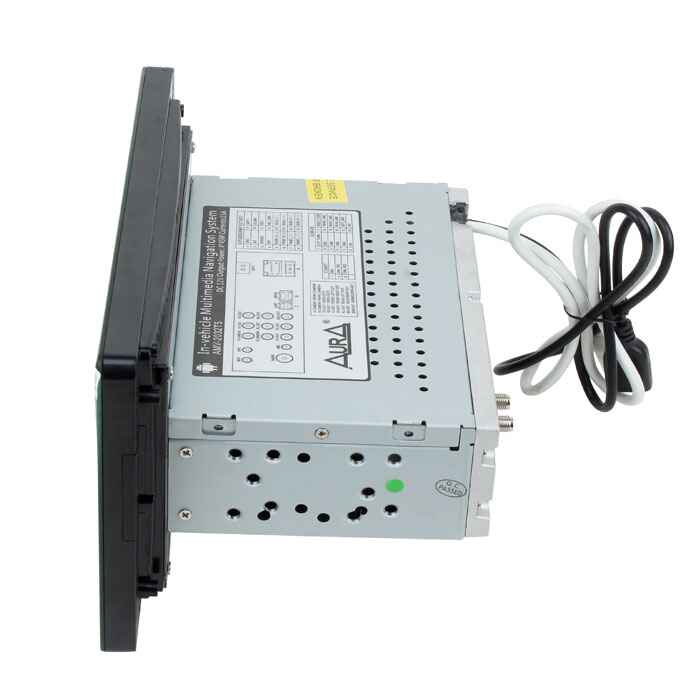

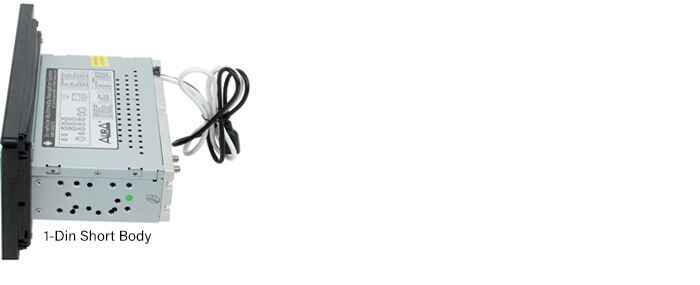

  • The Back panel has short 1-Din body for better Heat Dissipation, thus maintaining continuous performance.

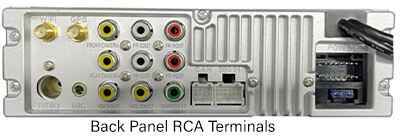

  • The Back Panel boast RCA Out/Video out/Video In for upgrading your sound system by adding Amplifiers/speakers/subwoofer with ease of connection. The universal power connection lets the installer chose any aftermarket available cable with car specific cable connector. Thus, eliminating the need to cut any wire in car.The RCA out gives greater flexibility for the professional installer. The unit has flexibility to use 360-degree camera option OR use just Front/Rear View Camera (Software upgrade is required) or just Rear View Camera. Customer needs to purchase 360/Front/rear View camera separately.

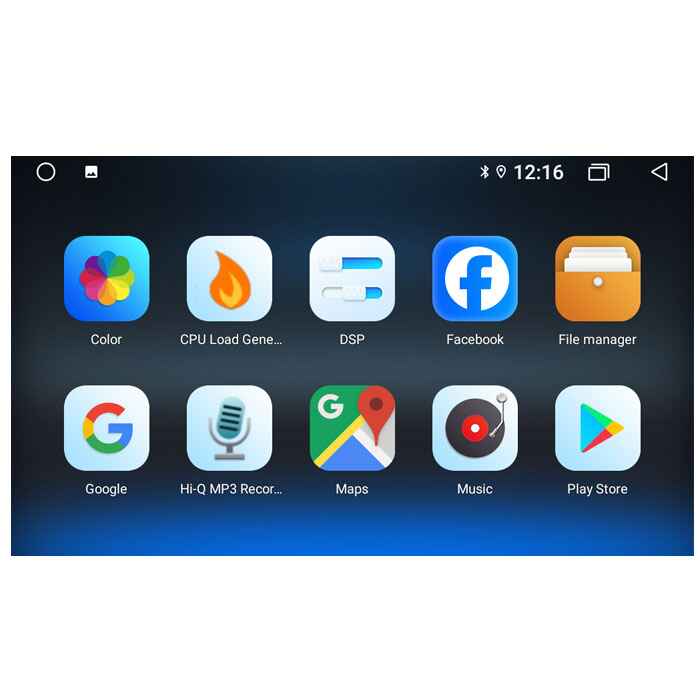

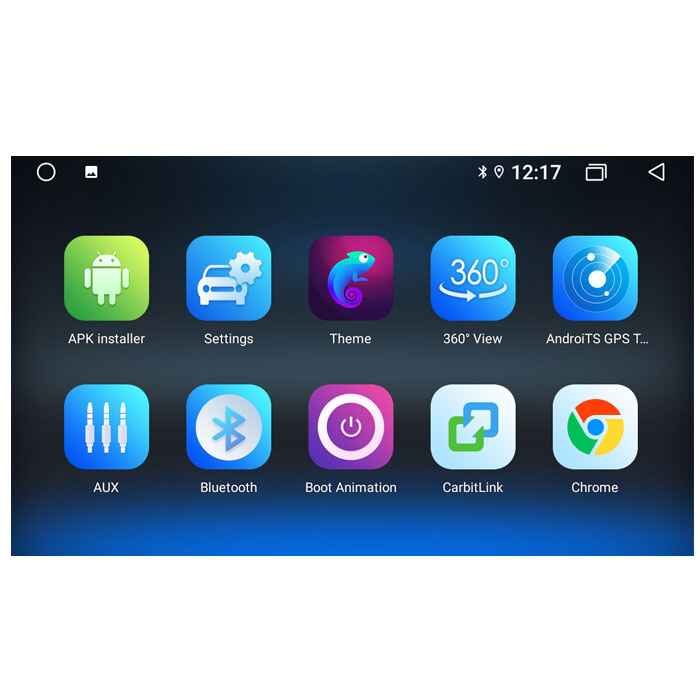

  • The Unit has host of Apps features such as TLink App for Car Play/Android Auto, USB Mirroring using Easy Connection for Android/iPhone, 2 USB Slots cable Grey/Black for easy differentiation of using it for Car Play/Android Auto and many Pre-installed apps. User can install apps from play store directly on the receiver.

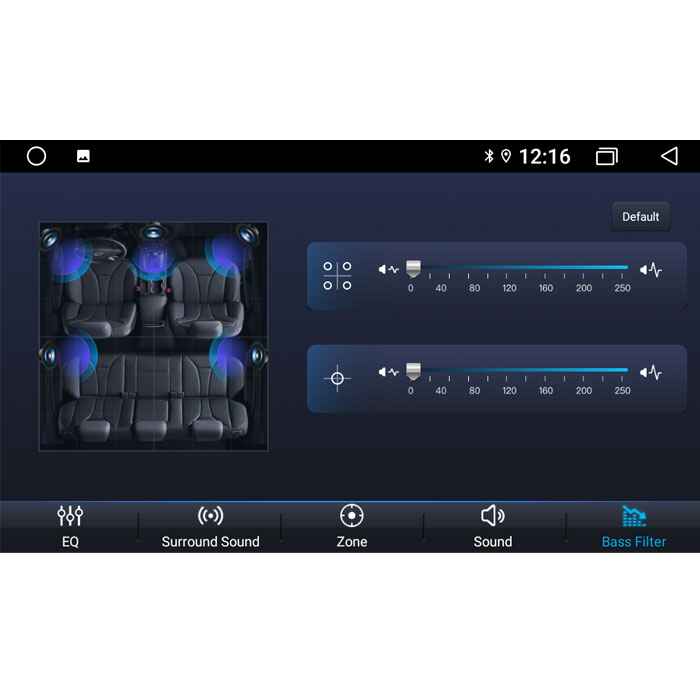

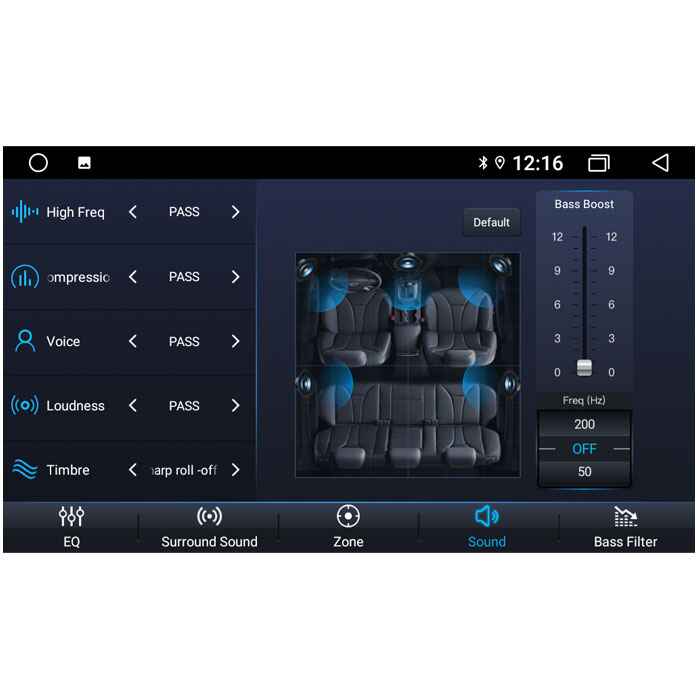

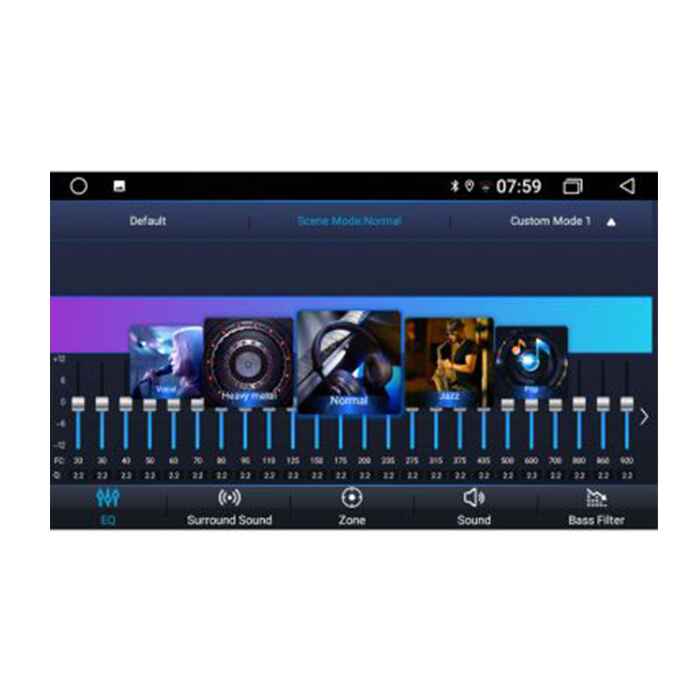

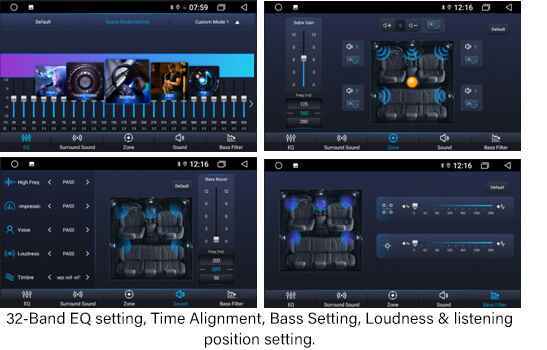

  • The Aura Unit has been made for the Audio enthusiast who love to hear clear sound and crave for good sound setting in car. The unit comes with Genuine DSP with 32 band Equalizer setting, Time Alignment, Bass Control, Loudness control, setting by listening position such as driver, co-passenger or rear seat passengers. The setting can be adjusted as per the listening position. 32-Band EQ setting, Time Alignment, Bass Setting, Loudness & listening position setting.

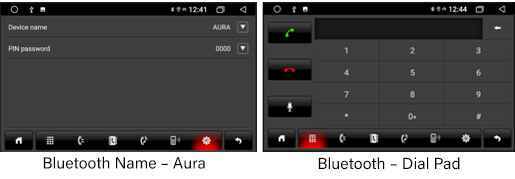

  • The Bluetooth connection lets you pair your mobile phone, import phonebook (contacts name/number) from your mobile phone or play music directly from your mobile phone with IDT3 tagging.
  • The Unit has 360 Degree camera option (need to purchase separately) and enjoy the bird eye view of your car. The Unit offer various flexibility option for Camera connection. User can use either 360-Degree Camera or just Rear View Camera or Front/Rear View camera. To use Front/Rear view camera together, software upgrade is required.We recommend using Aura universal Rear view camera models RVC-42AHD or RVC-62AHD or 360-Degree camera model BVC-92AHD.

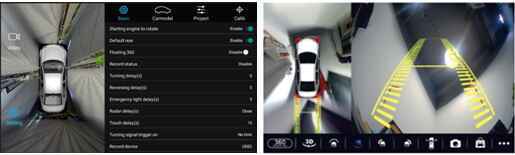

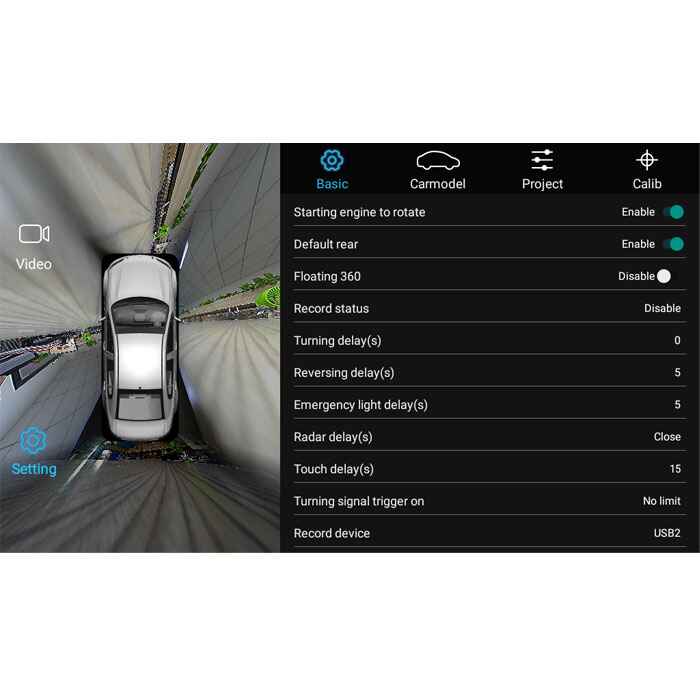

  • 360-Degree Camera setting & Appearance
  1. CPU: 4-CORE, A-53 Processor
  2. HD Resolution: 1080*600
  3. 9 Inch IPS Screen
  4. 2.5D Capacitive Screen
  5. Android 10 Version
  6. Genuine 2GB RAM 32GB ROM
  7. Mosfet Power Amp – 4 X 48W High Grade Amplifier for better sound quality
  8. Real DSP Audio Processing 32 Band EQ, Cross over setting, Time Alignment, HPF, LPF, Gain Control
  9. Built IN Bluetooth with External Mic
  10. Built in Bluetooth AD2P
  11. Bluetooth Music Playback
  12. USB Playback
  13. 1-DIN Back panel with RCA IN/OUT
  14. 3 RCA Pre out, 1 Front L/R, 1 Rear L/R, Subwoofer Out
  15. 2 Video in for Rear/Front View Camera, Displays Split Image (Software Change is required)
  16. Support 360 Degree Camera - Default
  17. 2 Video out for Rear Seat Monitors
  18. Mirroring for Android/IOS using Eazy connect App
  19. Apple Car Play – Wired and Wireless using T-Link
  20. Android Audio – Wired Using T-link
  21. 2 USB cable, Separate for Car play/Android Audio
  22. Wi Fi Built in
  23. Pre-Installed YouTube, Google Maps
  24. 1 Year Warranty
General
Workingsupplyvoltage:
12V(allowable limits9.6-15V)
Fuse:
15A
Maximumoutputpower:
4x 48W(4Ohms)
Rated output power:
4 x 28 W(4Ohm)
Speaker Impedance:
2-8ohm
Frequency response:
20 Hz- 20 kHz
Display viewing angle:
vertical±30°,horizontal±15°
Line output(RCA):
6-channel(3pairs)
RCAoutputlevel:
3.5V
Maximumcurrentconsumption:
15A
Temperature(working):
From 0°C to+60°?from45%to80%
Humidity(working):
USB
Supported media:
USB FLAC,WAV,APE,AAC,MP3
Supportedformats:
FAT16,FAT32
Filesystem:
USB 2.0, USB 3.0,upto64Gb
USB:
English
ID3Tagsupport:
Bluetooth
Version:
4.2
Profiles:
A2DP,AVRCP,HFP
Frequency:
2,4GHz
RadioFM(VHF)
Radiotuningmemory:
18FM,
FM frequency range:
87.5- 108.0 MH
Antennaimpedance:
75ohms
AUXIN
Audioinputlevel:
500 mV (maximum 2 V)
Name
Download
User Manual- AMV-2032T5
