FIREBALL-466

FIREBALL-466

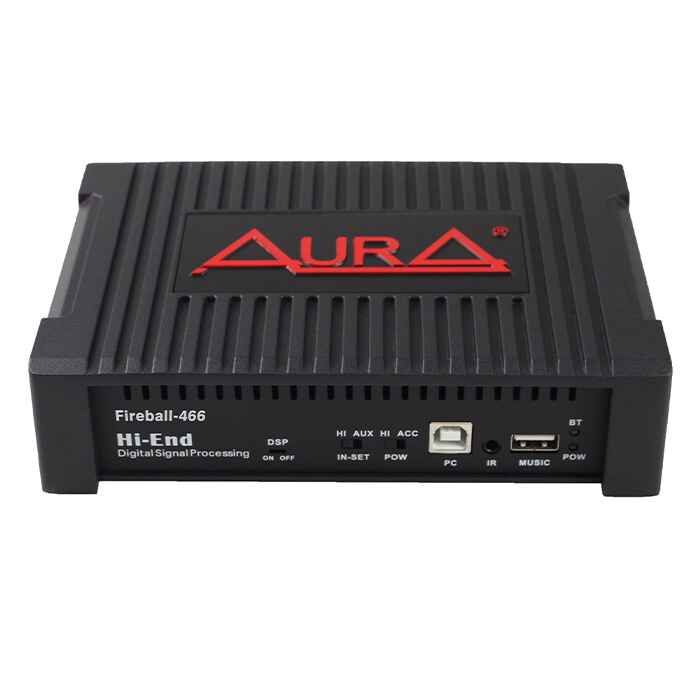

DSP with Built-in 4-Ch Amplifier
  • Fireball-466 is a Digital signal processor with built in4Ch Class AB Amplifier with 4 Ch Input and 6Ch Output. It comes with easy tuning PC software “Aura DSP 466 “andIdeal for Android Headunit for Improved Sound Performance. It is also capable of Direct Music Playback from USB/Smartphone via DSP Unit using External BT Receiver and Control.Read More

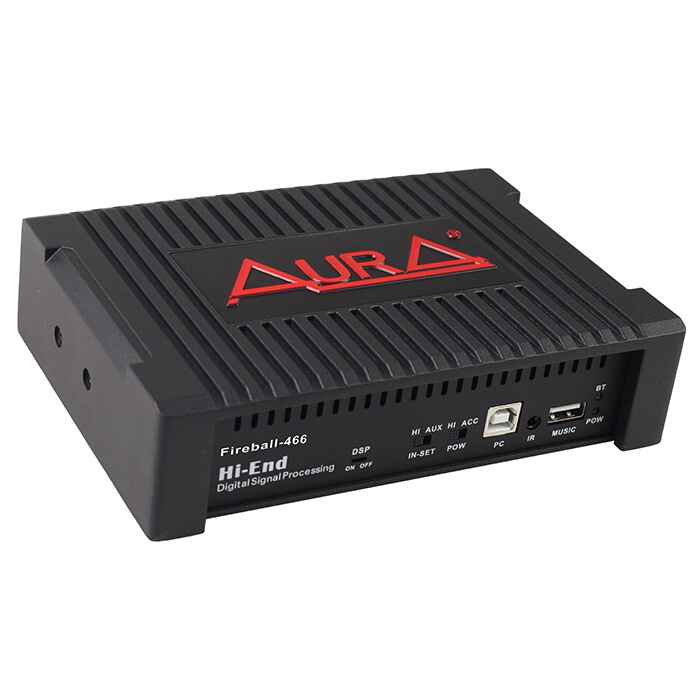

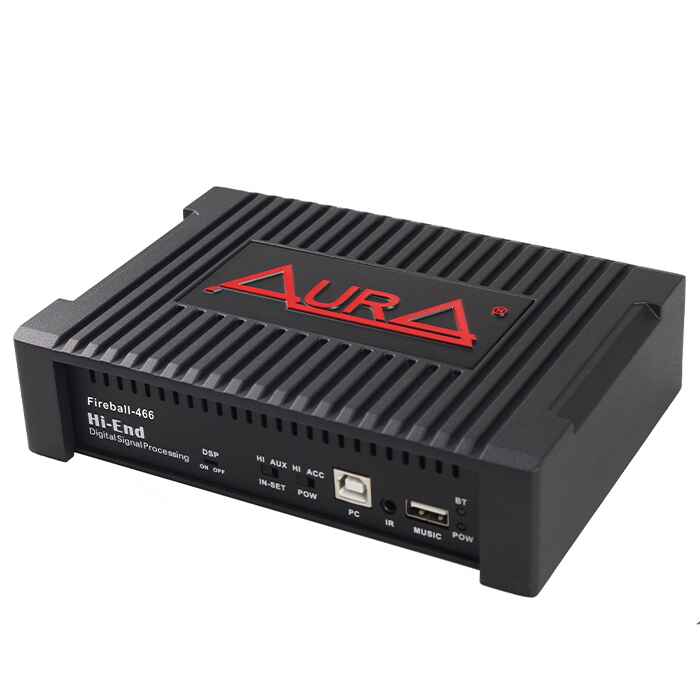

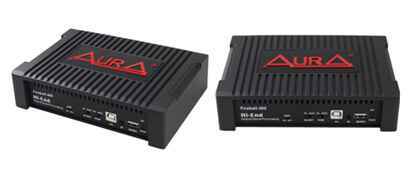

  • The Fireball-466 DSP with Amplifier comes with solid design and heatsink for improved sound performance and sound settings.
  • The DSP with 4Ch Input and 6 Ch output.

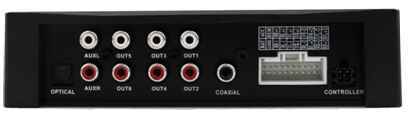

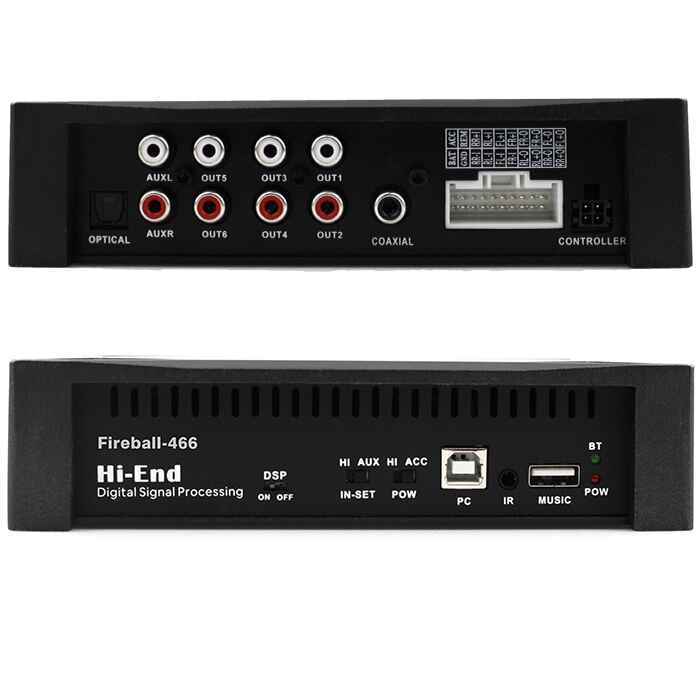

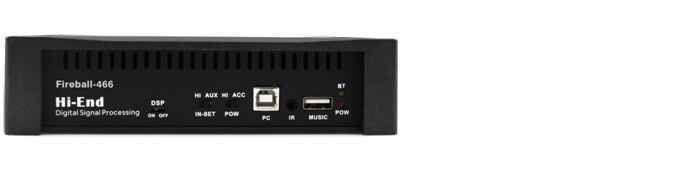

  • The DSP comes with PC input, USB Slot, IR slot Etc for easy connectivity, tuning and music playback.

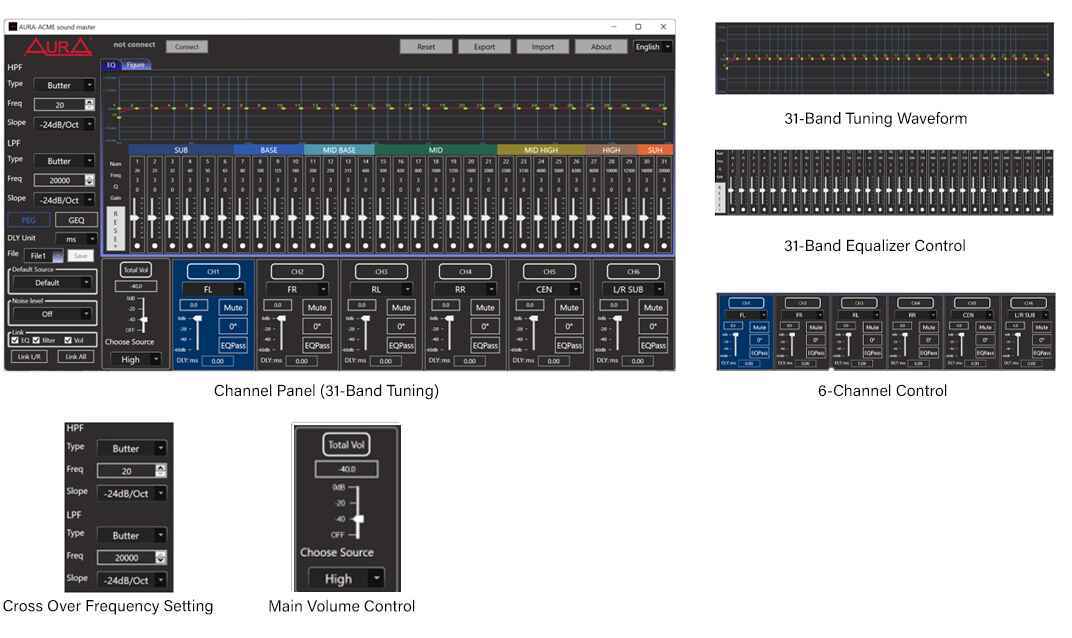

  • Aura PC Software:You can tune up to 31-EQ setting and 3 types of each cross over setting for High and Low pass frequencies.

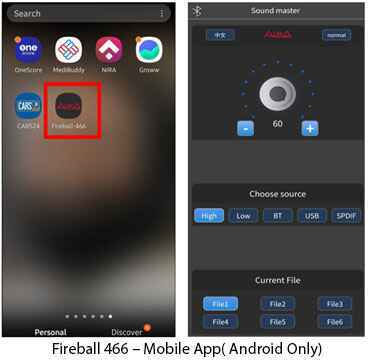

  • Mobile App for Android Smartphone (APK File):for smart tuning through your mobile phone.

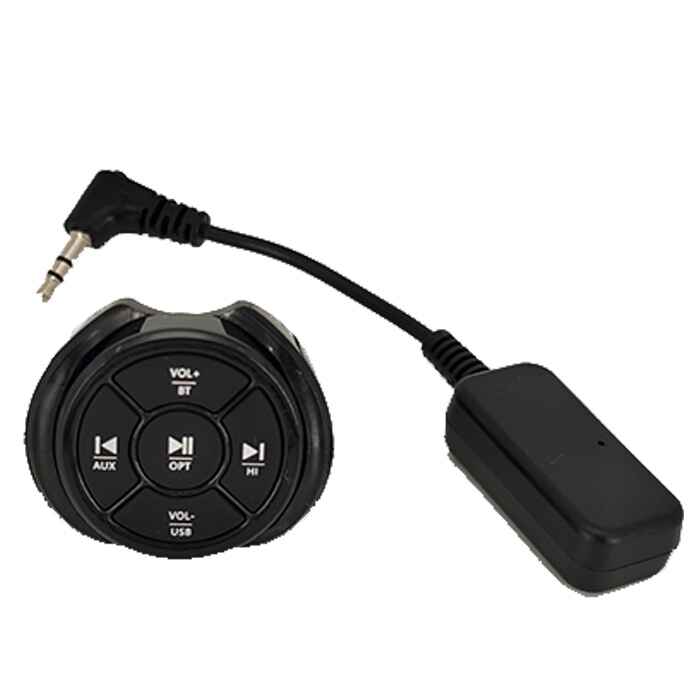

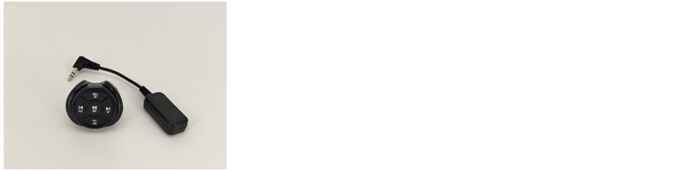

BT Receiver/Remote Control

Enjoy Music playback from your smartphone directly through USB/BT Receiver/Control. Plug in the BT Receiver at the IR input, Pair your smartphone and enjoy music playback directly.

  • Model No: Fireball - 466
  • Description: DSP with Built-in 4-Ch Amplifier
  • Class AB 4 Ch Amplifier •
  • 4 Channel Input, 6 Ch Output
  • Audio • RMS Power: 35Wx4(4Ω), 60Wx4(2Ω) •
  • DSP Resolution: 24 Bit •
  • DSP Power: 48 kHz •
  • Output Power RMS @ 4 Ohms (≤1% THD +N): 4x35W •
  • Output Power RMS @ 4 Ohms (≤1% THD +N): 4x50W •
  • PC Software & Mobile App APK(Android) for DSP Tuning
  • Distortion (THD): <0.005% •
  • Damping Factor: >70 •
  • Operating Voltage: 10 -14.4V •
  • Sampling Rate: 48kHz •
  • Signal Converter A/D: 7210 •
  • Signal Converter D/A: 4344
  • Input • 2 x RCA/ Aux-in •
  • 1 x COAX-in •
  • 4x High Level Speaker Input •
  • 1 x Optical SDPIF •
  • 1 x Remote-in •
  • 1 x USB •
  • RCA/ Cinch Sensitivity: 300mV •
  • High Level Input Sensitivity: 2.5V •
  • Impedance High Level: 100 Ohms •
  • Signal-to-Noise Ratio Analog-In: 100dB •
  • Signal-to-Noise Ratio Digital Input: 100dB •
  • Signal-to-Noise Ratio Analog Input: 100dB Output •
  • 6 x RCA / in • 4 x High Level Speaker Output •
  • 1 x Remote-out •
  • Voltage RCA/ Cinch: 4V RMS Feature •
  • 31-Band Equalizer/ Phase & Time Alignment Setting•
  • Frequency Response: 10Hz-20kHz •
  • Max. Current Consumption: 30A •
  • Dimension (W x H x D): 170 x 120 x 43mm •
  • Weight: 0.85 kg Accessories •
  • Operating / Installation Instruction • Remote Control, BT Receiver
Name
Download
User Manual Fireball-466
Android App
Aura DSP 466.exe
