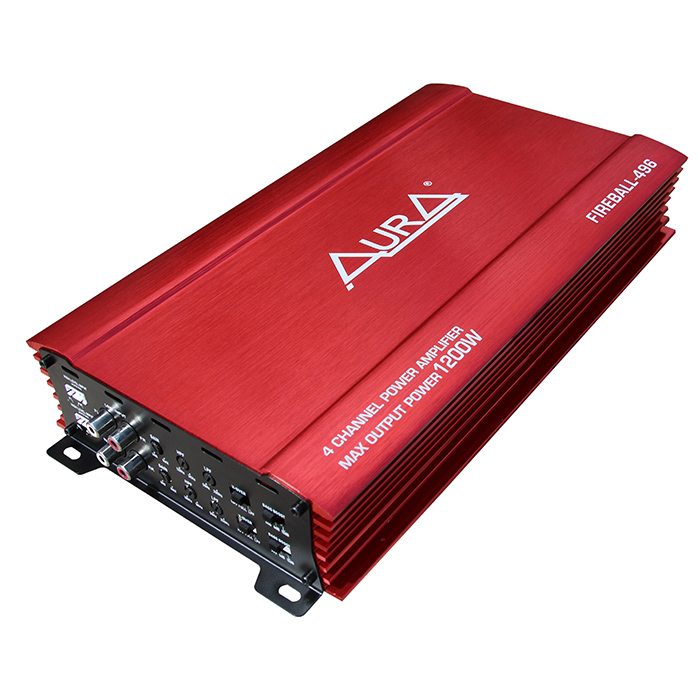

FIREBALL-496

FIREBALL-496

  • The Fireball Series Amplifiers comes with Class AB amplification and has the highest powerful sound in its category among the competition. The High powerful sound is strong enough to drive any good quality speakers. The Fireball-496 comes with Max Power of 1200W and 100WX4@4Ohms.Read More

FIREBALL-496 features:
  • The aesthetically looking neat heatsink design and various cooling fins on heatsink help heat dissipation. The result is that the amplifier maintains consistent sound performances without any reduction in sound output.

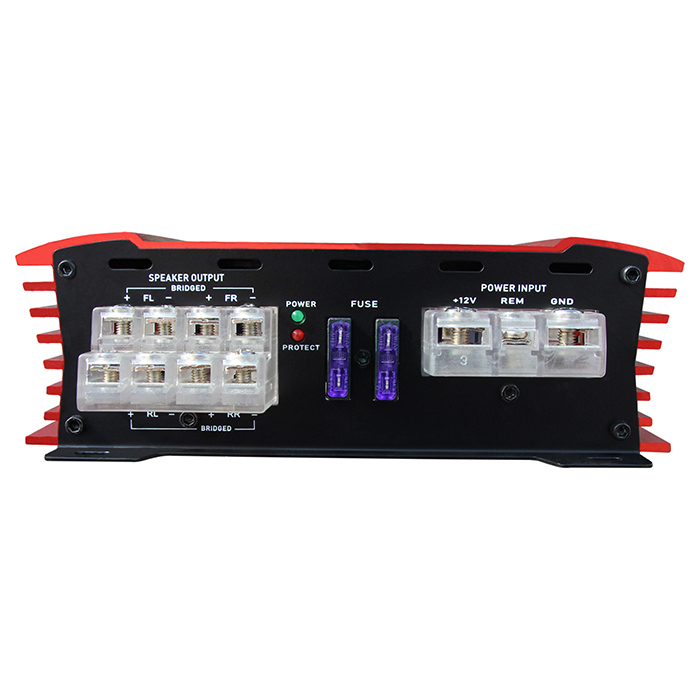

  • Transparent matt terminals for convenient use and the good drop-proof and loose-proof effects. It helps in good wiring connection and easy installation.
  • Dust proof sealed potentiometers as long-life components to prevent dust, and if there is no such sealed proof potentiometer, the result quality is bad for long time use and may have “click” noise.
  • 6/12dB Bass Boost improve bass and sound quality.
  • Fireball Series Amplifiers has High level input auto turn-on function and turns on when there is receiver output.
  • Wide range High Pass Filterfrom 120Hz to 3K Hz, can drive tweeter directly.

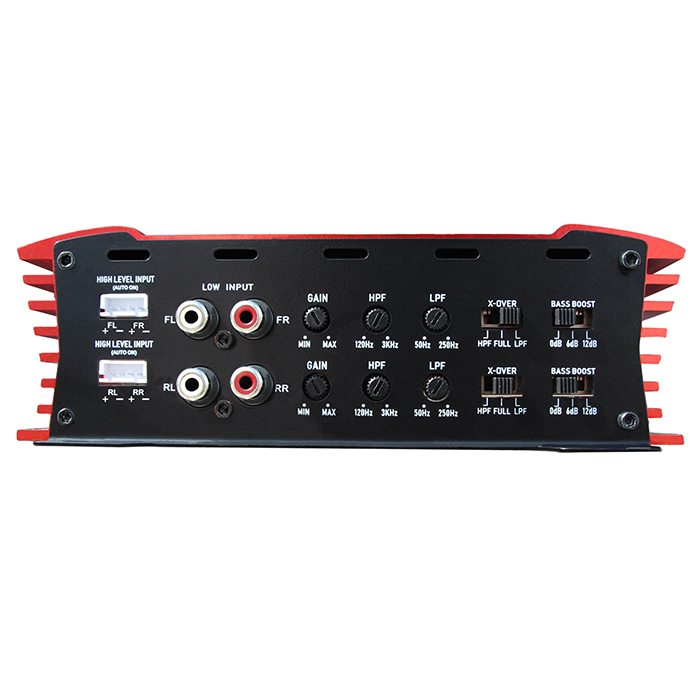

  • Neat and symmetrically aligned terminals and input for adjusting variable crossover frequency, Bass Boost and easy tuning.
  • The advanced various protection circuit design includes thermal, overvoltage, overload or DC offset protection.
  • High quality toroidal transformer ensures strong power supply. The result is natural and powerful continuous sound throughout the volume range.
ModelFIREBALL-496
Class AB
Number of the channels 4
Frequency response 10 - 50K Hz
2 Ohm RMS Power (14.4 V) 125 W x 2CH
4 Ohm RMS Power (14.4 V) 100 W x 4CH
4 Ohm RMS Power (Bridge) 250 W x 2
Minimum permissible load on the channel 2 Ohm
Minimum permissible load in a bridge connection 4 Ohm
Input SPL 20mV-6V
Low Pass filter 50 - 250 Hz
High Pass filter 120 - 3K Hz
Crossover 12 dB/Oct
BASSBOOST(45HZ) 0/6/12dB
Input terminal 4 Ga
Output terminal 16 Ga
Damping factor > 100
T.H.D <0.15%
Working voltage 10 - 16 V
Signal-to-noise ratio > 95 dB
Fuse rating 35A x 2
RCA input FL/RL/FR/RR
High Level input (auto-turn on) Yes
Protection circuitry Thermal/Short Circuit/Overload/DC Offset
Size (WxLxH mm) 353.5x179x59.1
Name
Download
User Manual Fireball-496
