360° Intelligent Parking System

The Aura BVC-92AHDF is 360° Intelligent Parking system solution for Android system which does not have 360 features and also for OE system in cars....Read More

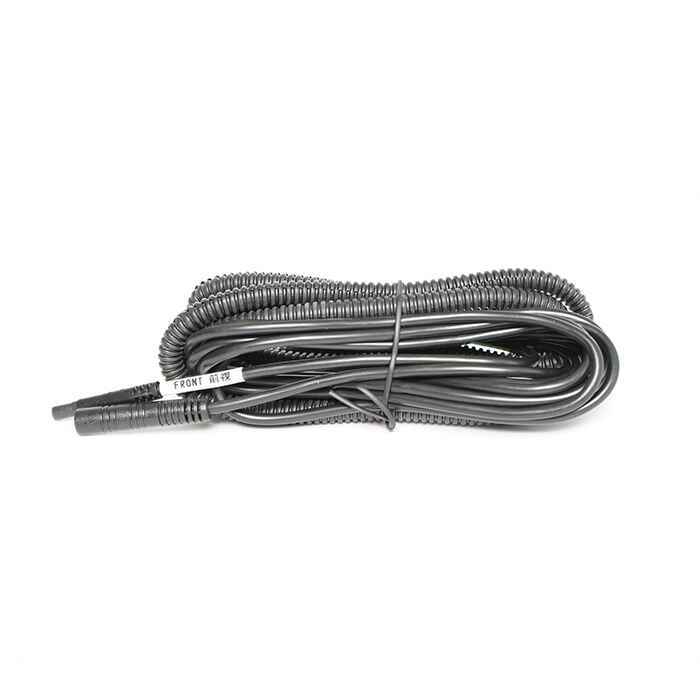

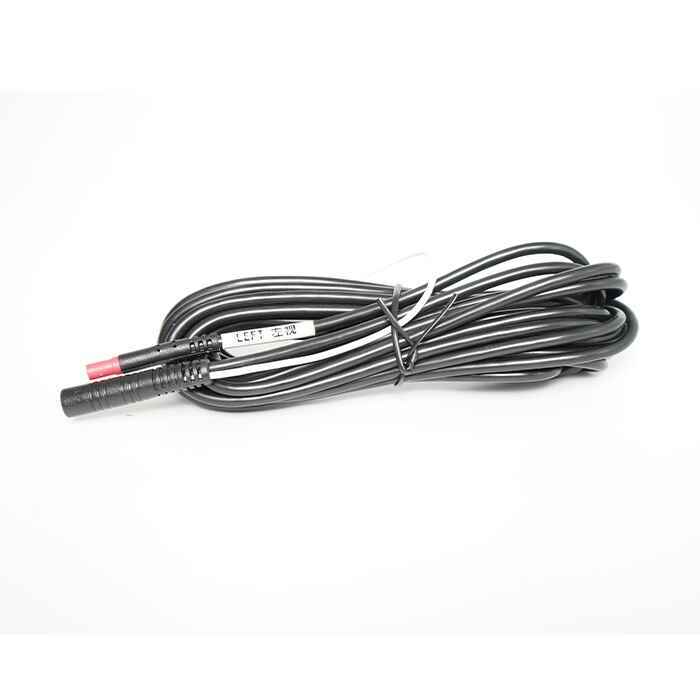

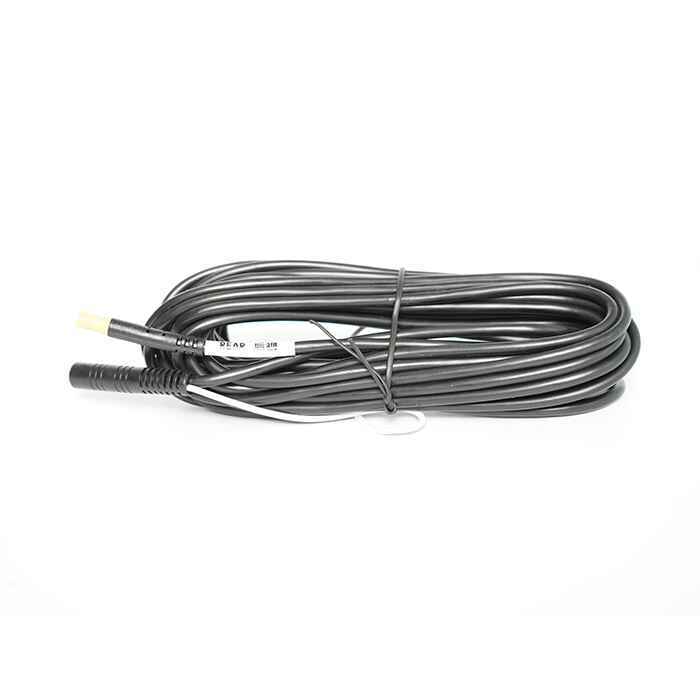

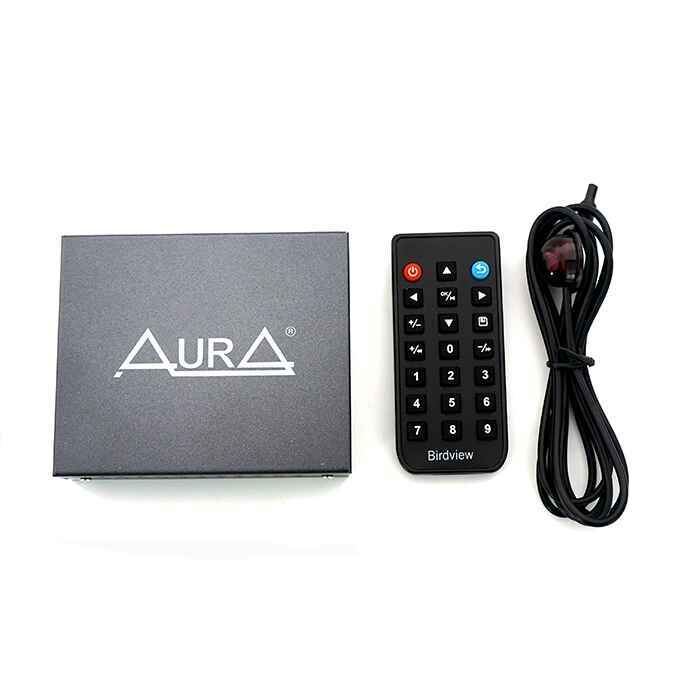

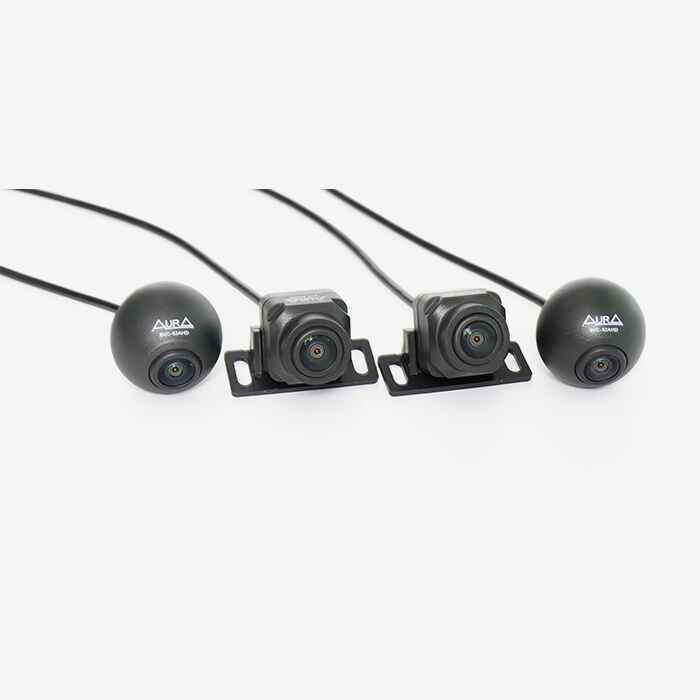

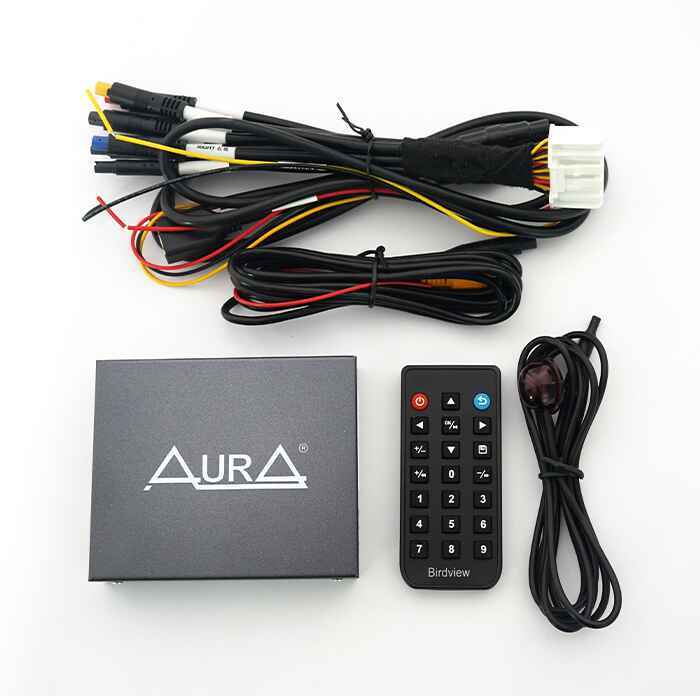

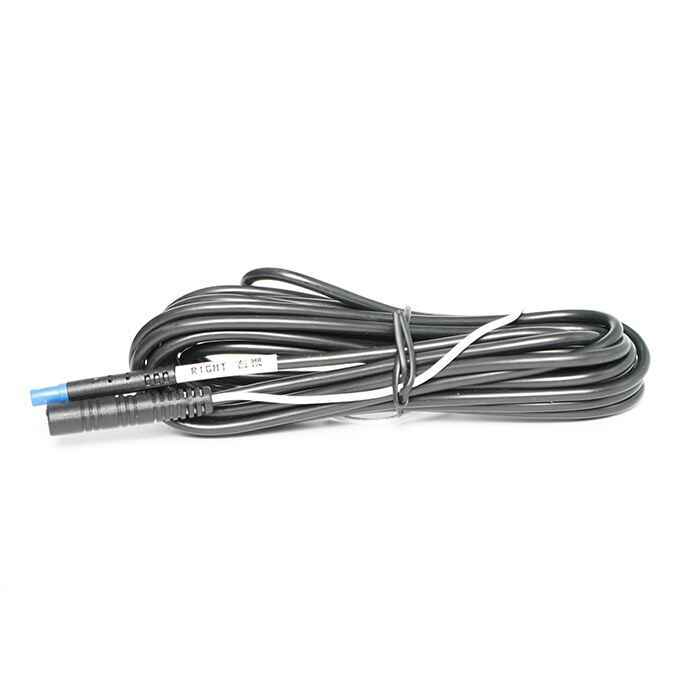

This package consist of control unit, 4 cameras, remote , sensor and cables. It does not contain any Car specific cables.

When installing with Android system, you do not require any special cable. All accessories are included in the box and can be installed to android system.

When this unit is being installed to car with OE system, it requires special car specific cable.

The Car specific cables are sold separately by Enigma. Please check with your installer for car specific cable availability before installation. The Car Specific cables for OE System of Hyundai/Kia, VW, Toyota, Honda etc. are sold by Enigma Separately. As each car brand and variants has different connectors, Please check with your installer for system compatibility. Enigma does not guarantee or take responsibility that this unit will work with all cars. It is advised to check with installer before purchase.

The Control units needs to adjusted and set as per each car brand.

Example:

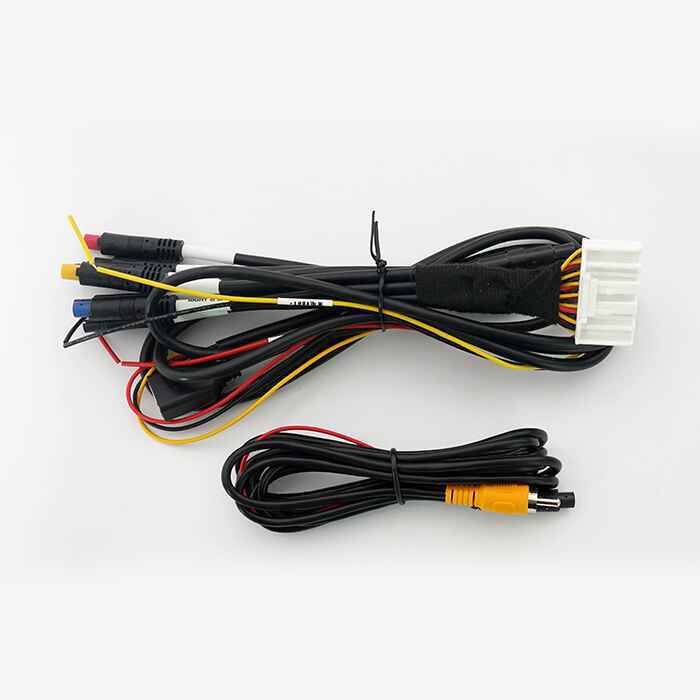

Connector Cable for HYUNDAI/KIA CARS.
    • Hyundai CRETA 2015-2022 Models – CODE 1346(ON)
    • Hyundai TUCSON 2015-2022 CODE -236(ON)
    • KIA SELTOS 2015-2022 CODE 236(ON)
    • KIA SELTOS 2021 - CODE 346(ON)
    • KIA CARNIVAL 2021 - CODE 346910(ON)
Code Setting :

As per Car brand/model, Set the codes which are from 1 to 10.

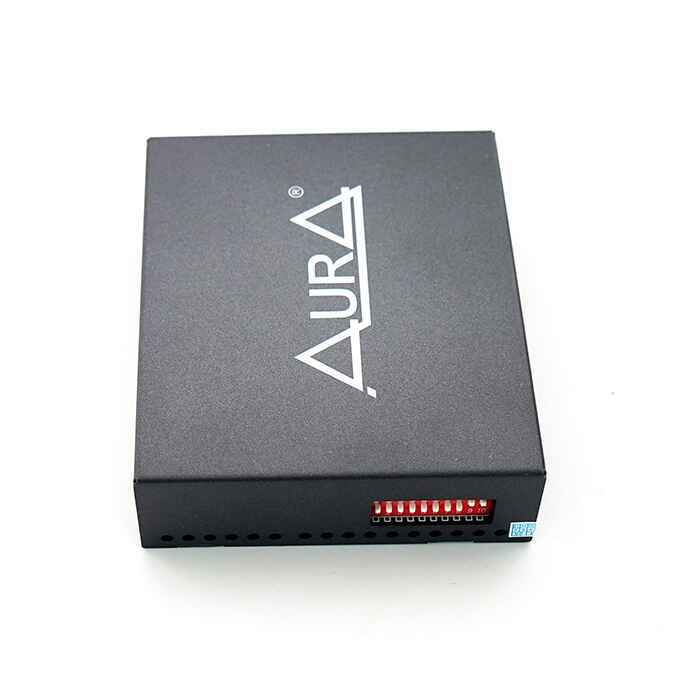

Example : Setting up Hyundai Creta code 1346, set the keys in the unit to 1346 by keeping the buttons 1, 3 4 and 6 at upper side and rest at lower side.

No.ItemDescription

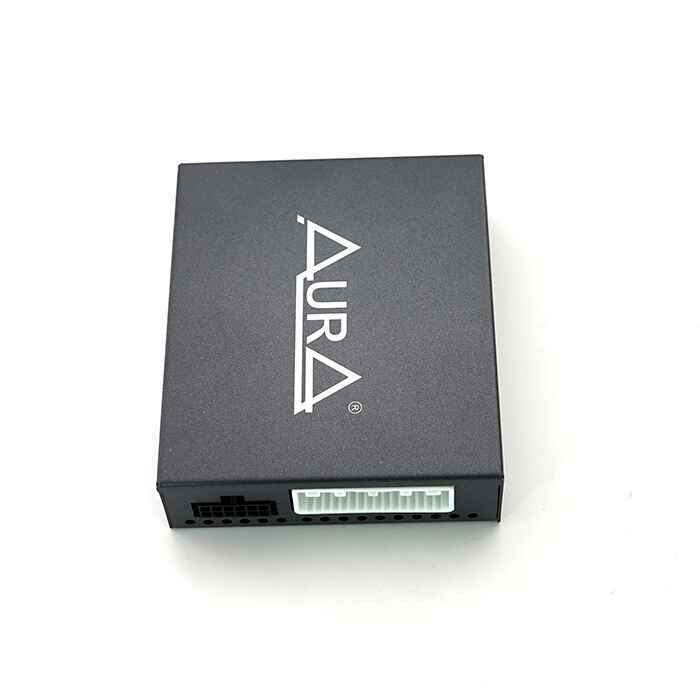

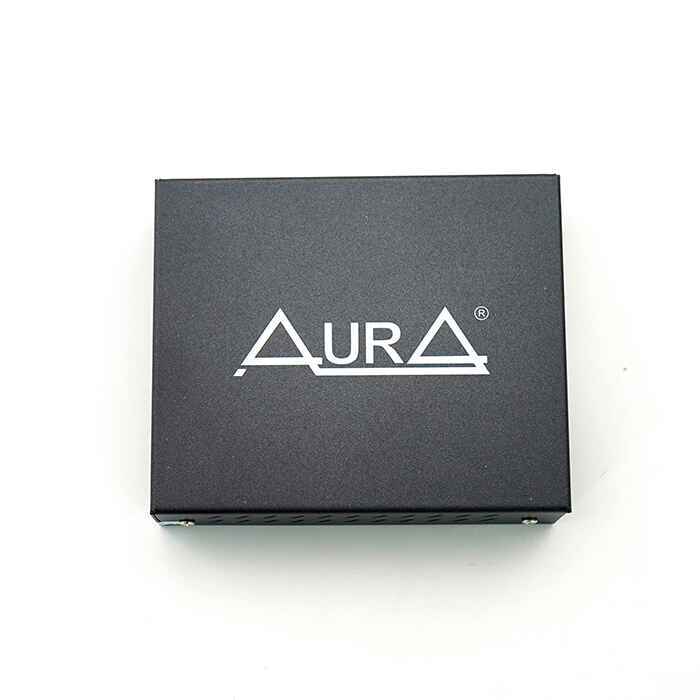

  Control Box
4.1 IC 2 Core Processor
4.2 Storage Capacity 2-32GB U Disk cycle overwriting and saving
4.3 Output Signal Single Composite Video output
4.4 Input Signal 4 Video Inputs
4.5 Operating Voltage 9-16V exceeds Automatic Power off Protection
4.6 Operating Temperature -20~+70°C
4.7 Cold Starting Time 10 Seconds
  Camera
4.8 Output formats PAL
4.9 Effective pixel array 1920 (H) x 1080 (V)
4.10 Resolution 2.0MP
4.11 Day and night mode Color without IRCUT
4.12
4.13
View Angle Horizontal 185°
Vertical 1080P@25fps
4.14 Day/Night Mode Auto
4.15 Video Signal AHD
4.16 Exposure Auto
4.17 Gain Control Auto
4.18 White Balance Auto
4.19 Min. Illumination 0.05Lux@(F1.2,AGC ON)
4.20 Image Character Front view
4.21 Working Voltage 5V
4.22 Working Current 115mA
4.23 Working Voltage Range 4.8~5VDC
4.24 Working Temperature -20~+70?
4.25 Storage Temperature -30~+75?
4.26 Image Quality Assurance Temperature -20~+65 ?
4.27 Image Quality Assurance Temperature -20~+65 ?
4.28 Environment Humidity 90%RH
4.29 Waterproof Grade IP68(Camera Part)
4.30 Video amplitude 720P@25fps
Name
Download
BVC-92AHDF Instruction Manual
