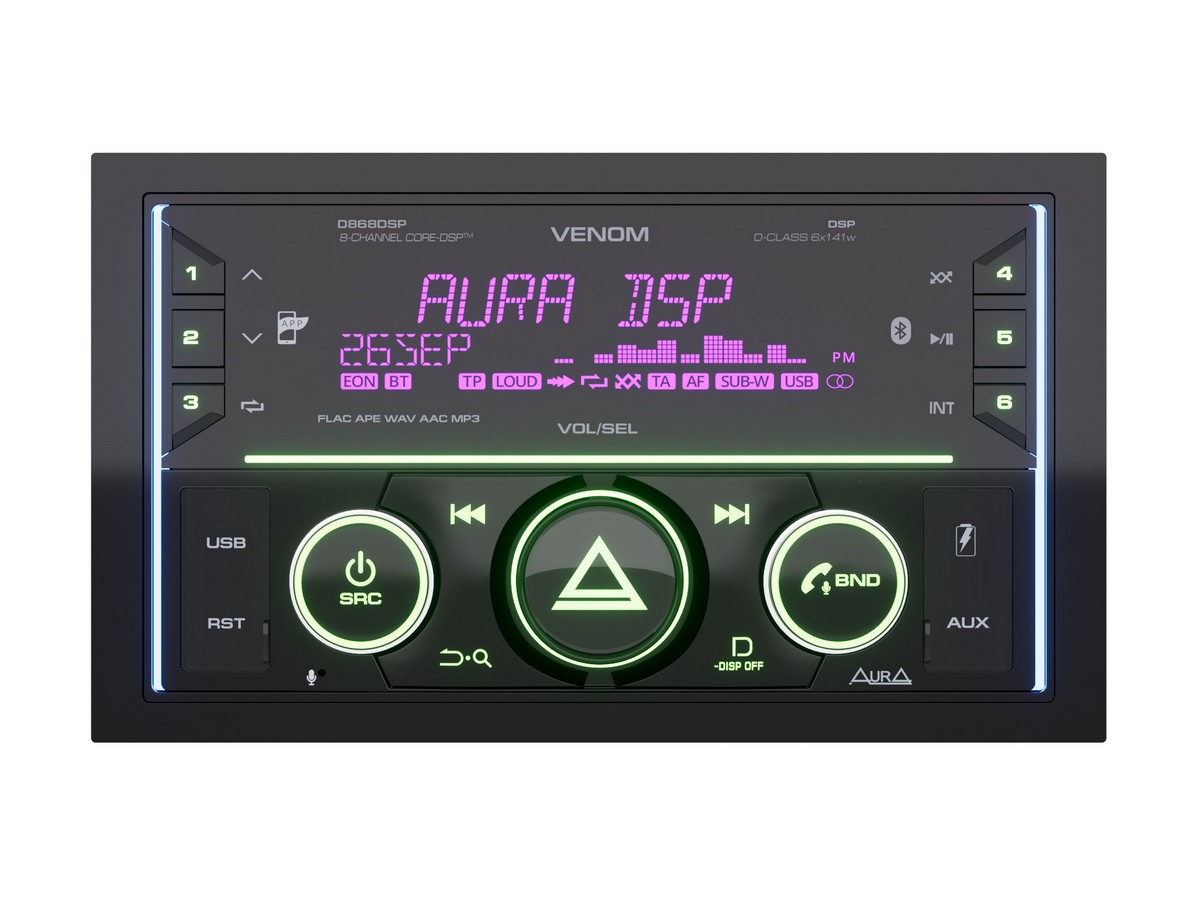

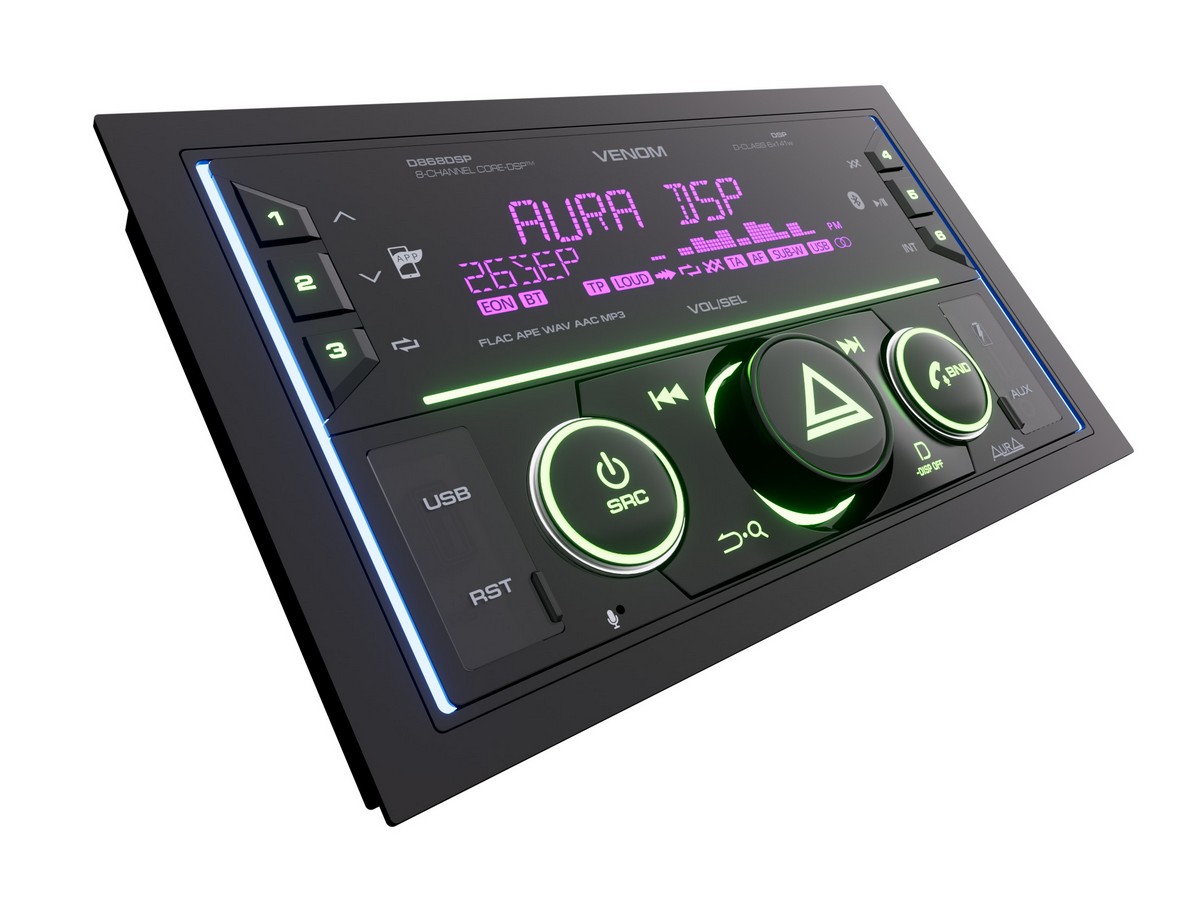

VENOM-D868DSP

• 2-DIN car processor BT/USB/FM receiver
• Powerful built-in class D amplifier.
• Maximum output power: 6×141W
• Nominal output power (at THD less than 1%): 6×71W
• Minimum speaker impedance: 4 Ohms
• USB connector with charging current: up to 1.2A
• Reading audio formats: Hi-res FLAC (24 bit/48 kHz) , MP3, WAV, APE, AAC
• RCA outputs: 4 pairs (8 channels)
• Maximum amplitude of the RCA output signal: up to 6 volts
• PLATFORM: CORE-DSP

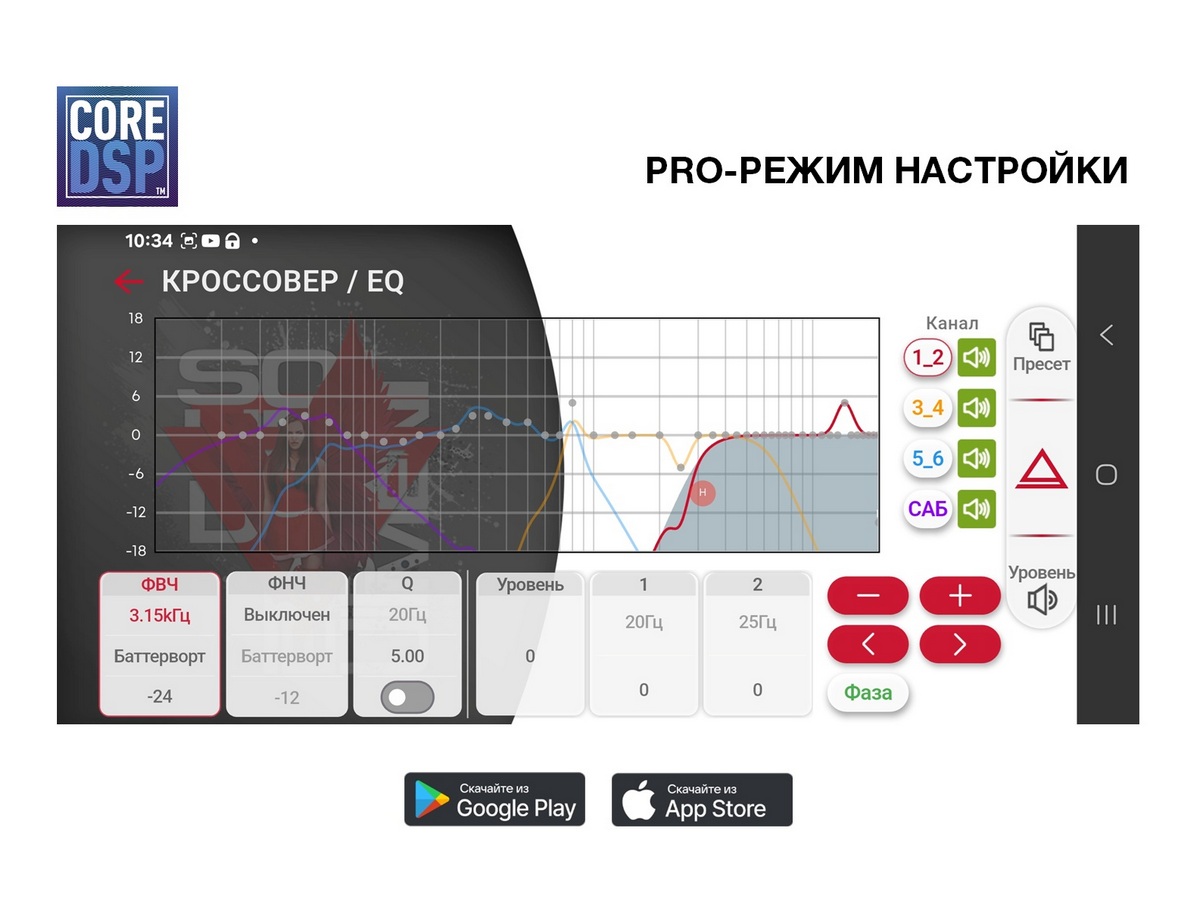

• <strongPRO-mode
• Channel-by-channel time correction of the sound field (Time Alignment)
• 48-band parametric equalizer
• Q-factor adjustment for each band
• 8-way crossover:
• Channels 1-6: HPF / LPF: 20 Hz - 12.5 kHz / Disabled
• Channels 7-8: HPF / LPF: 10 Hz - 800 Hz / Disabled
• Roll-off slope: up to 48 dB per octave.
• Filter type selection: Butterworth, Linkwitz-Riley, Bessel.
• Stereo mode for 7-8 channels
• Compatible with iOS and Android application
• Full Russian localization (menu and application)
• Built-in Bluetooth module (A2DP)

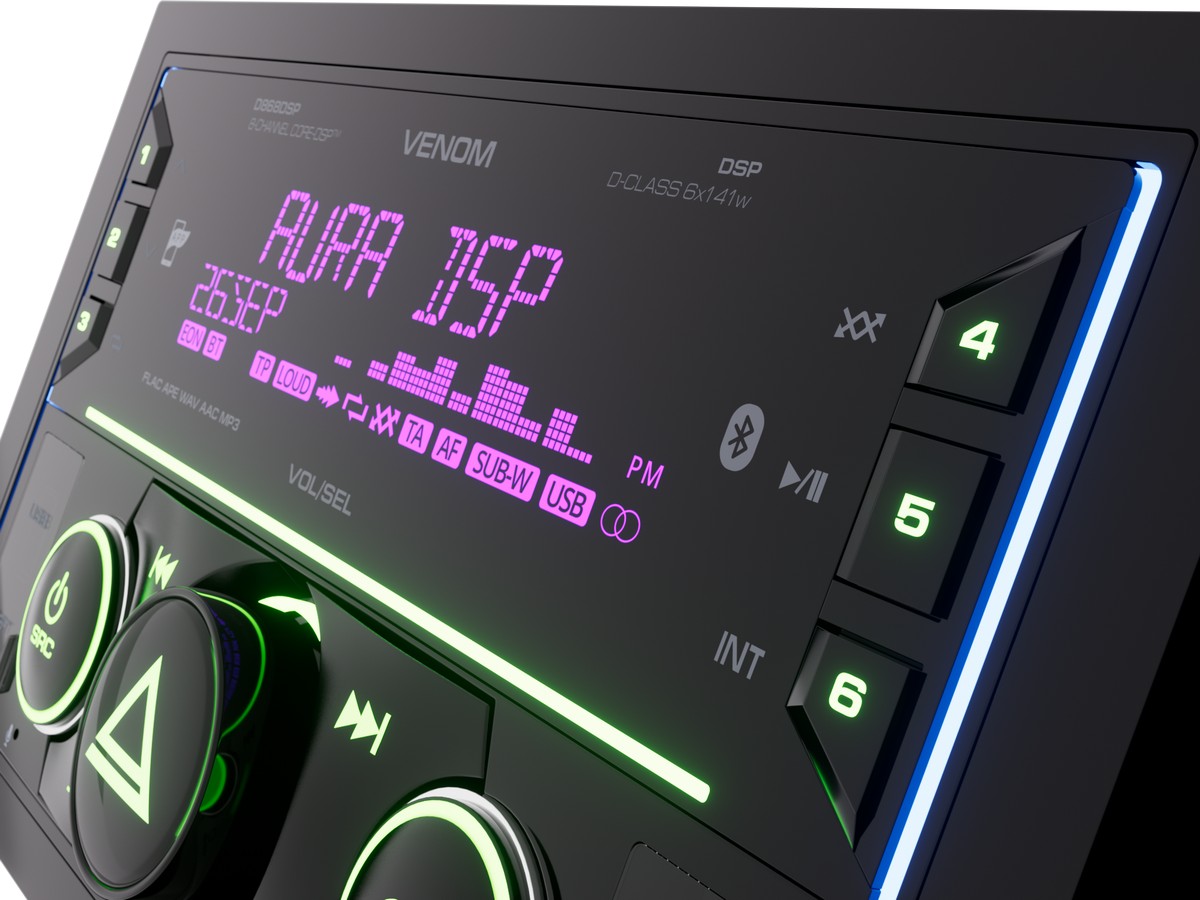

• RGB backlighting of the front panel (3 zones, 16 million colors)
• D-SWC (training resistive buttons on the steering wheel without an external adapter)

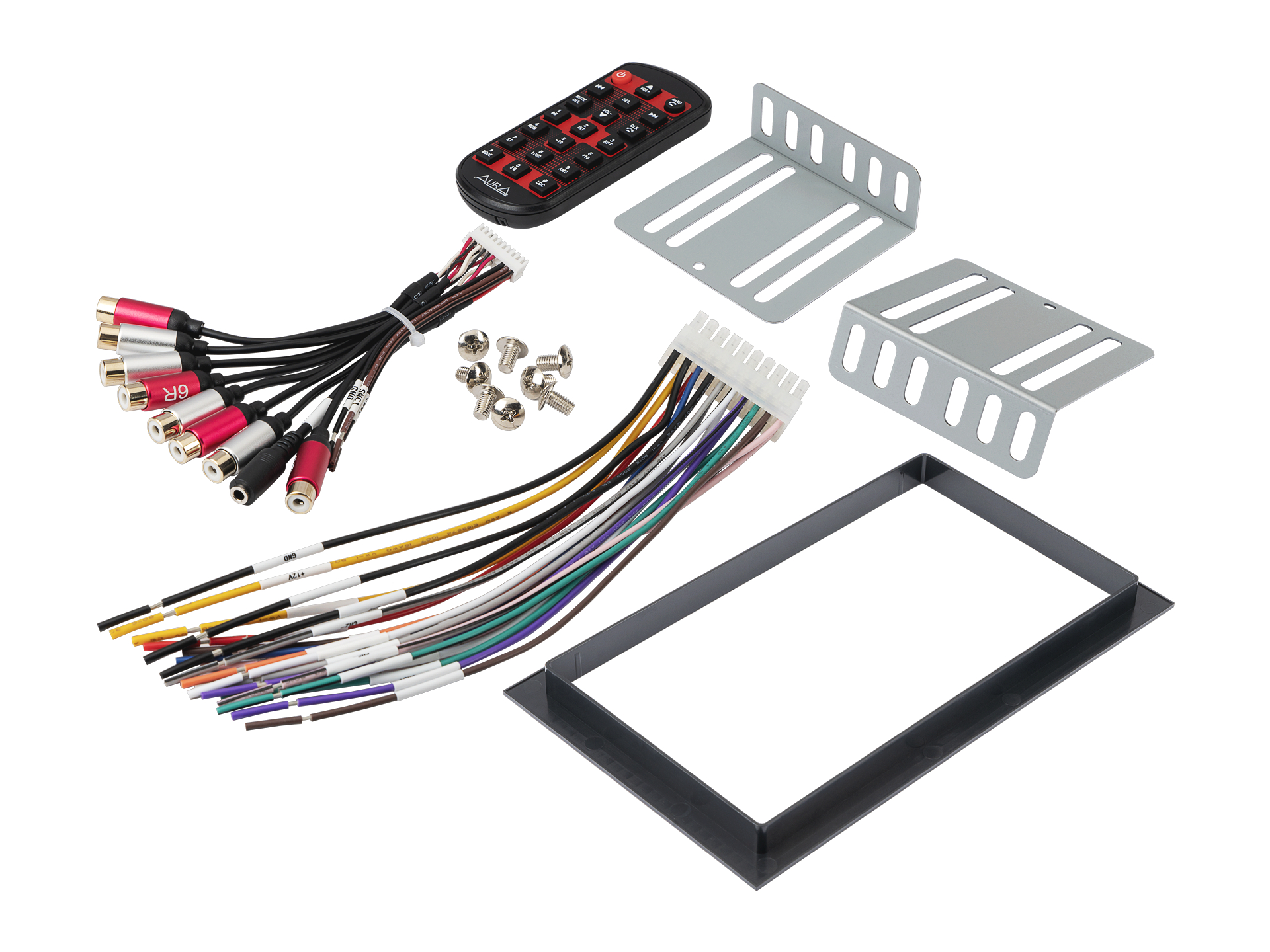

• Remote control: included
• ATTENTION!
• The power wires must be connected DIRECTLY TO THE CORRESPONDING BATTERY TERMINALS using copper cable with a minimum cross-section of 4 mm (12 GA)!
• Connection to the factory wiring or the factory ISO connector is NOT ALLOWED!
