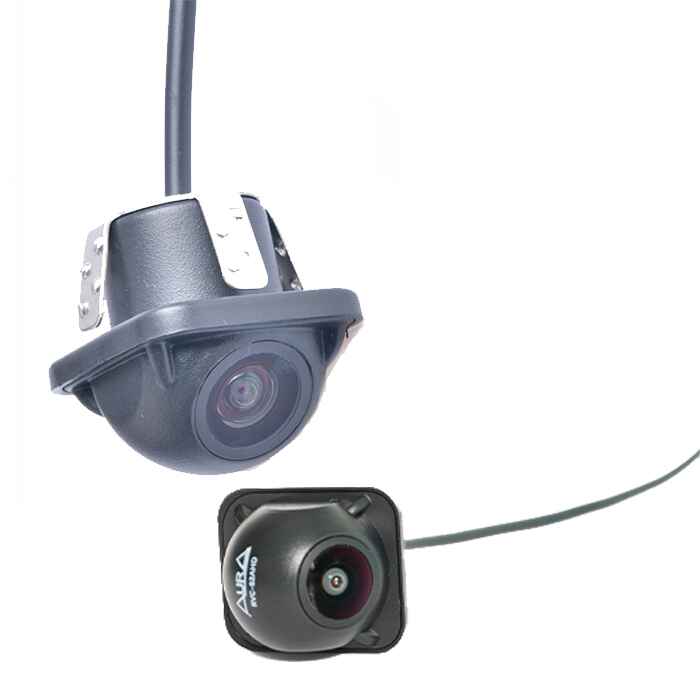

RVC-62AHD Universal Rear View Camera

RVC-62AHD Universal Rear View Camera


Description Not Available
ItemDescription
Image Sensor CMOS 1/3
Output formats PAL/NTSC
Effective Pixel Array 1920(H) x 1080(V) AHD – 733(H) x 493 (V) CVBS
Resolution 2.0MP
Day and Night Mode Colour
Video Amplitude AHD/CVBS
Day/Night Mode Auto
Video Signal AHD/CVBS
Exposure Auto
Gain Control Auto
 White Balance ATW
Min. Illumination 0.02Lux@(F1.2,AGC ON)
Wide Angle Diagonal 170°
View Angle Horizontal 140°
Vertical 100°
Image Character One switchable line: AHD PAL or CVBS NTSC switchable
Working Voltage 12V DC
Working Current 80±10mA
Working Voltage Range 9~15V DC
Working Temperature -25~+70°C
Storage Temperature -30~+75°C
Image Quality Assurance Temperature -25~+70°C
Environment Humidity 90%RH
Waterproof Grade IP68
Name
Download
User Manual -RVC-62AHD
