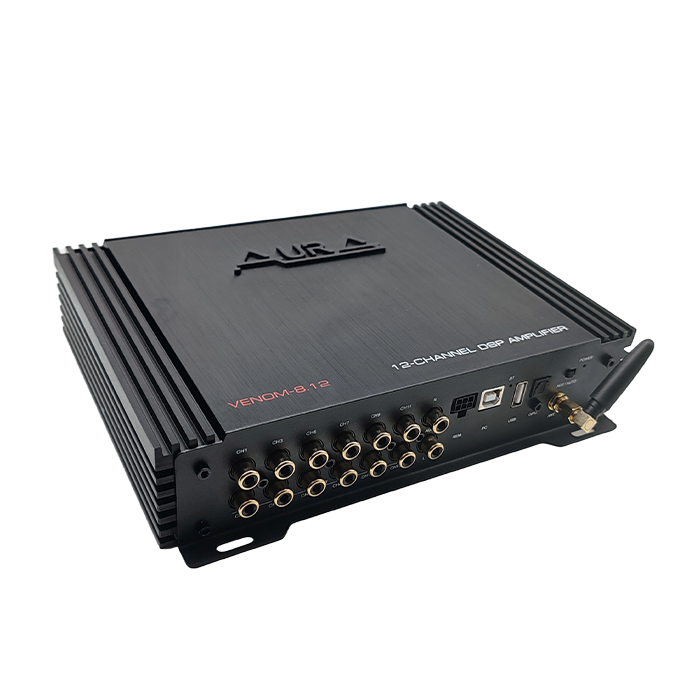

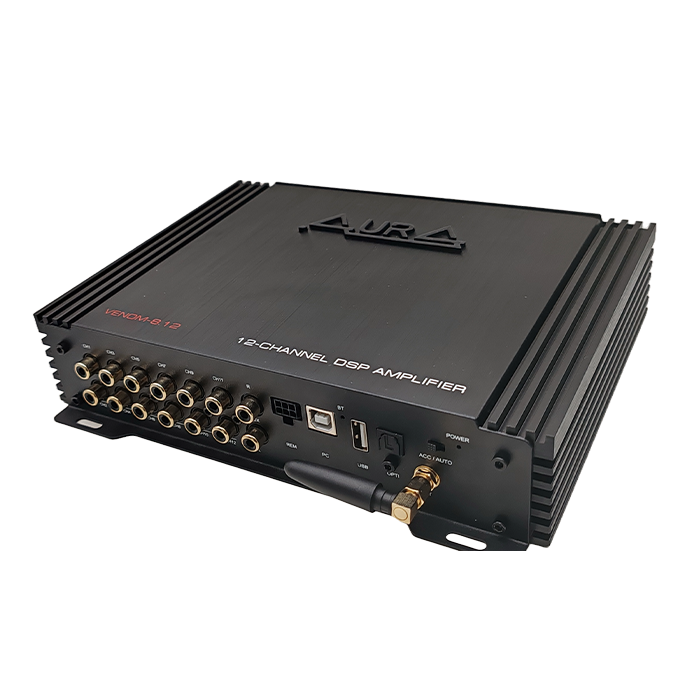

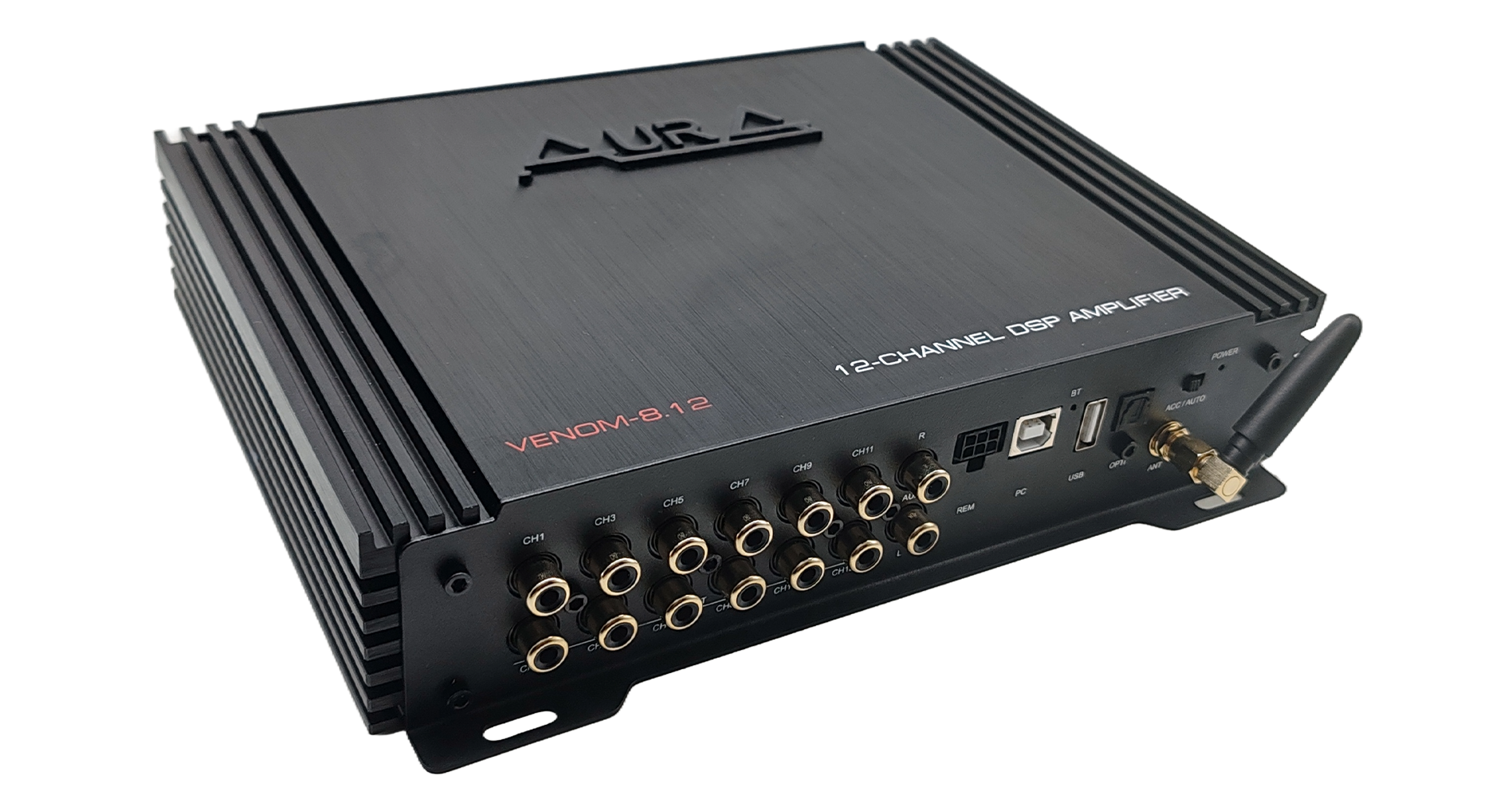

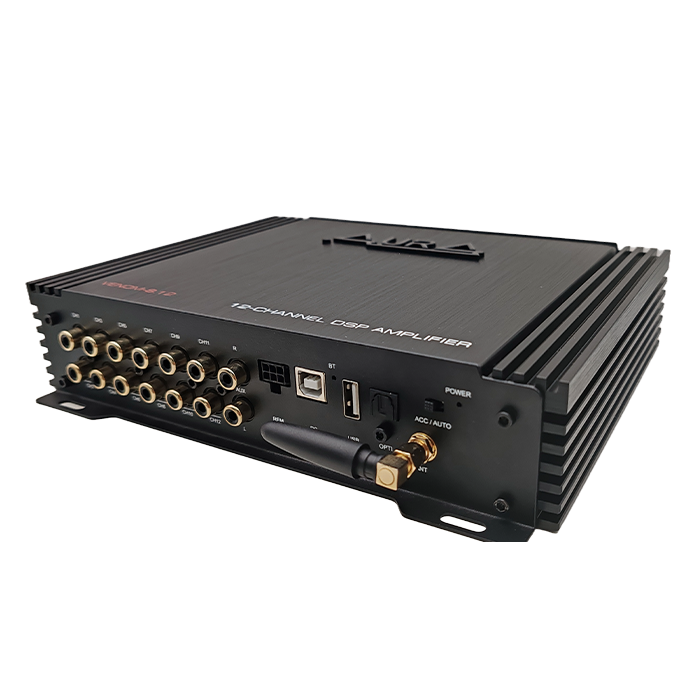

  • AURA VENOM-8.12
  • 12-Channel Digital Signal Processor with Built-in Class D Amplifier & Full-Range Connectivity.

The AURA VENOM-8.12 is an advanced 12-channel digital signal processor (DSP) designed to elevate your in-car audio system to professional standards. It combines high-resolution audio processing, multi-source input support, and a powerful Class D amplifier in a single unit. Ideal for audiophiles, installers, and car audio enthusiasts, the VENOM8.12 ensures precise tuning, seamless integration, and unmatched sound quality in any vehicle.

Versatile Input Options

The VENOM-8.12 is equipped with a wide range of input methods to integrate seamlessly with both OEM and aftermarket systems:

  • 8 High-Level Inputs – Designed to connect directly to factory speaker outputs, supporting input voltage up to 10V, ensuring compatibility with modern vehicle systems
  • 2 RCA Inputs – For low-level connections from aftermarket head units with cleaner signal input.
  • Optical (TOSLINK) Input – Digital input for lossless signal transfer from digital sources.
  • USB Audio(USB OTG) & USB Disk – Plug and play audio from flash drives and digital sources, supporting formats like MP3, WMA, WAV, M4A, AAC, and lossless FLAC/APE.
  • Bluetooth 5.1 Audio – Stream music wirelessly with fast, stable connectivity and high-resolution audio quality.

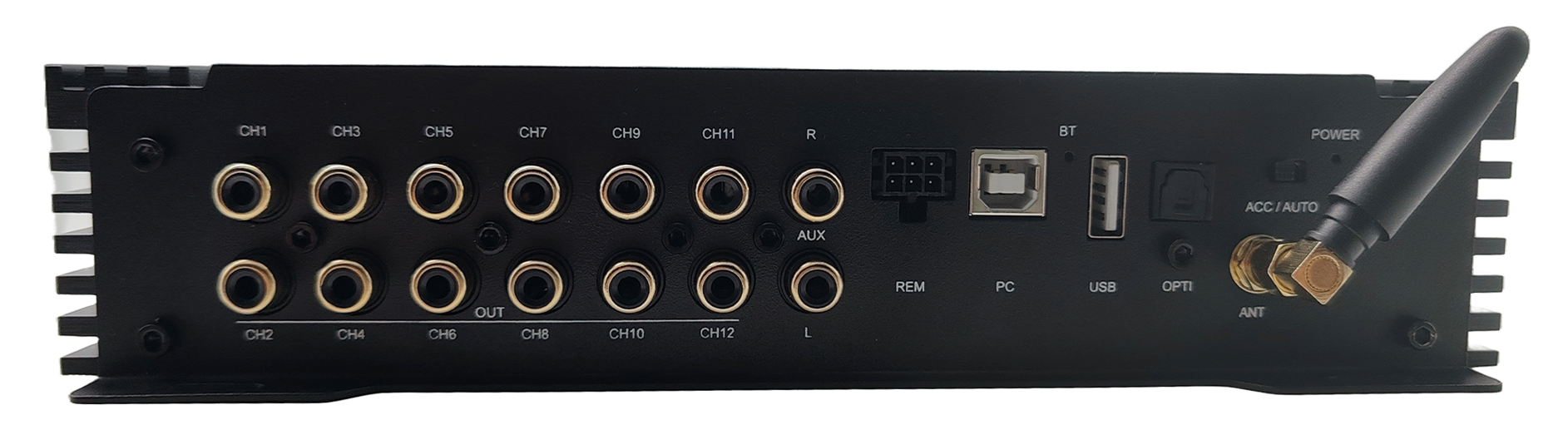

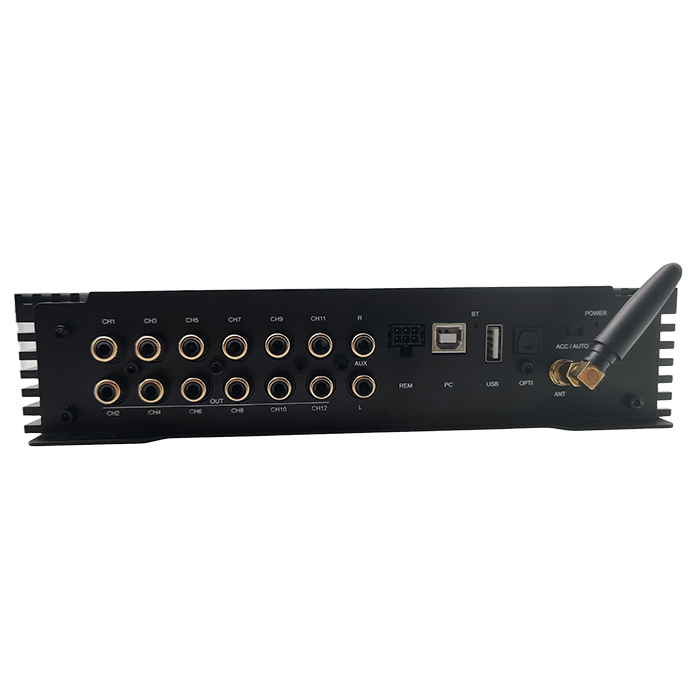

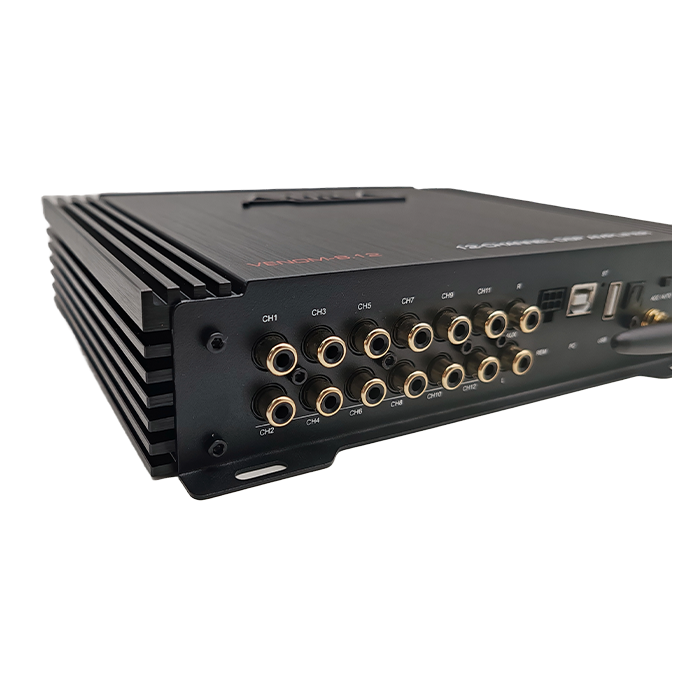

High-Performance Output Configuration

With 12 channels of output, the VENOM-8.12 gives you total flexibility to drive a complete multi-speaker or fully active system:

  • 12 RCA Outputs – For signal distribution to external amplifiers.

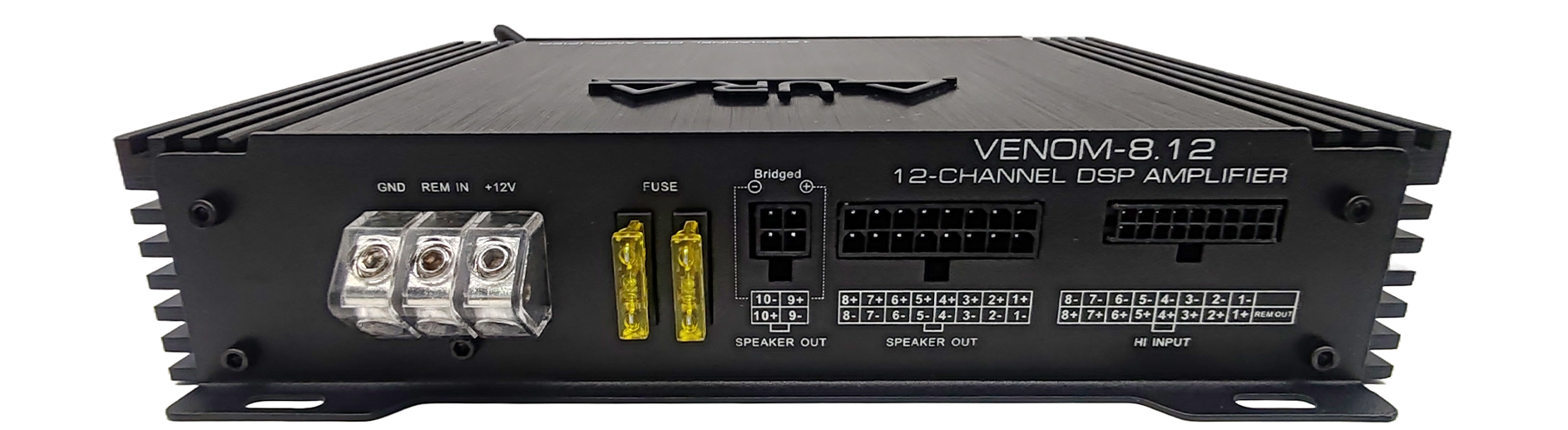

  • 10 High-Level Speaker Outputs – Ideal for direct speaker connection when using the internal Class D amplifier.

Output Voltage:

  • Channels 1–8: Up to 14Vrms
  • Channels 9–10 (High Power): Up to 20Vrms
  • RCA: 4Vrms, ensuring clean signal to external components.

Built-in Amplifier Power:

  • 8x50W RMS @ 4Ω + 100W RMSx2 @ 4 Ohms
  • 2x150W RMS @ 2Ω, or Bridged 300W RMS @ 4Ω
  • Amplifier Gain: Fixed at 26 dB, optimized for high signal integrity

Precision DSP Processing

At the heart of the VENOM-8.12 is a triple-core Cirrus Logic Smart Hi-Fi DSP (CS47L35), paired with high-quality ADC/DAC chips (CS4344, AKM4619) to ensure transparent, studio-grade signal conversion .

Cirrus Logic CS47l35

Cirrus Logic CS4344

AKM4619

  • 24-bit / 192kHz High-Resolution Audio Support – Delivers crystalclear sound across the full frequency spectrum.
  • 31-Band Parametric Equalizer per Channel – Fine-tune your system with precision adjustments.

Crossover Filters:

  • Types: Butterworth, Bessel, Linkwitz-Riley
  • Adjustable Crossover Points: 20Hz–20kHz
  • Slope Control: 6dB to 48dB per octave
  • Time Alignment: Up to 15ms delay per channel to perfectly timealign speakers for accurate imaging.
  • Phase Control: 0°–180° to correct phase cancellation and improve sound coherence.
  • EQ Q Factor (Slope Width): Ranges from 0.404 to 28.852 for narrow to wide bandwidth adjustments.
  • EQ Gain: Adjustable from -18dB to +12dB.

Control and Connectivity

Tuning and controlling your audio system is effortless with the VENOM8.12's multi-platform support:

  • TFT Remote Display – Real-time control and monitoring from inside the car. To be Purchased separately
  • PC Software Support – Full-featured DSP tuning on a Windows PC.
  • Mobile App Support – Available for Android and iOS for wireless control.
  • Preset Memory – Store up to 10 user-defined presets for quick access to different setups.

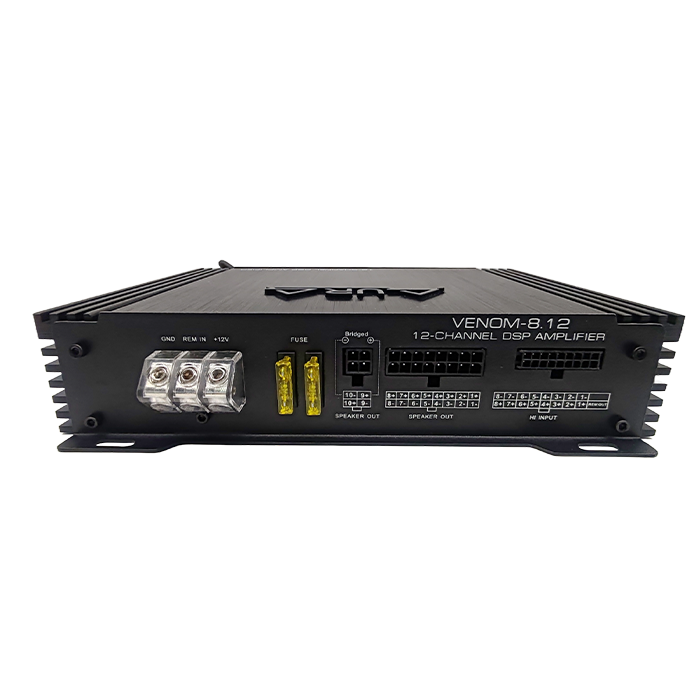

Electrical Specifications & Protection

Engineered for reliable operation in all vehicles, the VENOM-8.12 includes robust electrical support and protection features:

  • Operating Voltage: 9V–16V
  • Working Current Range: 0.5A – 50A
  • Static Current: 0.45A
  • Input Impedance: 20kΩ (high-level), ensuring compatibility with factory systems.
  • Low-Level Output Impedance: 680Ω
  • Signal-to-Noise Ratio:
    • RCA Output: 92dB
    • Amplified Output: 90dB
  • Remote Input Voltage: 3.5V
  • Remote Output Current: 0.1A
  • Protection Features:
    • Overheat Protection
    • Overload Protection
  • Status Indicators: Integrated LEDs for real-time system monitoring.

Designed for True Audio Enthusiasts

Whether you're building a competition-grade audio system or simply want to bring your vehicle’s sound to life, the AURA VENOM-8.12 offers unmatched control, power, and clarity. With cutting-edge DSP capabilities and integrated Class D amplification, this unit is the ultimate solution for customizing and optimizing your in-car sound experience.

Upgrade your sound. Command every detail. Experience VENOM.

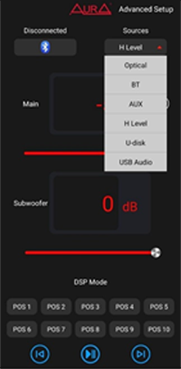

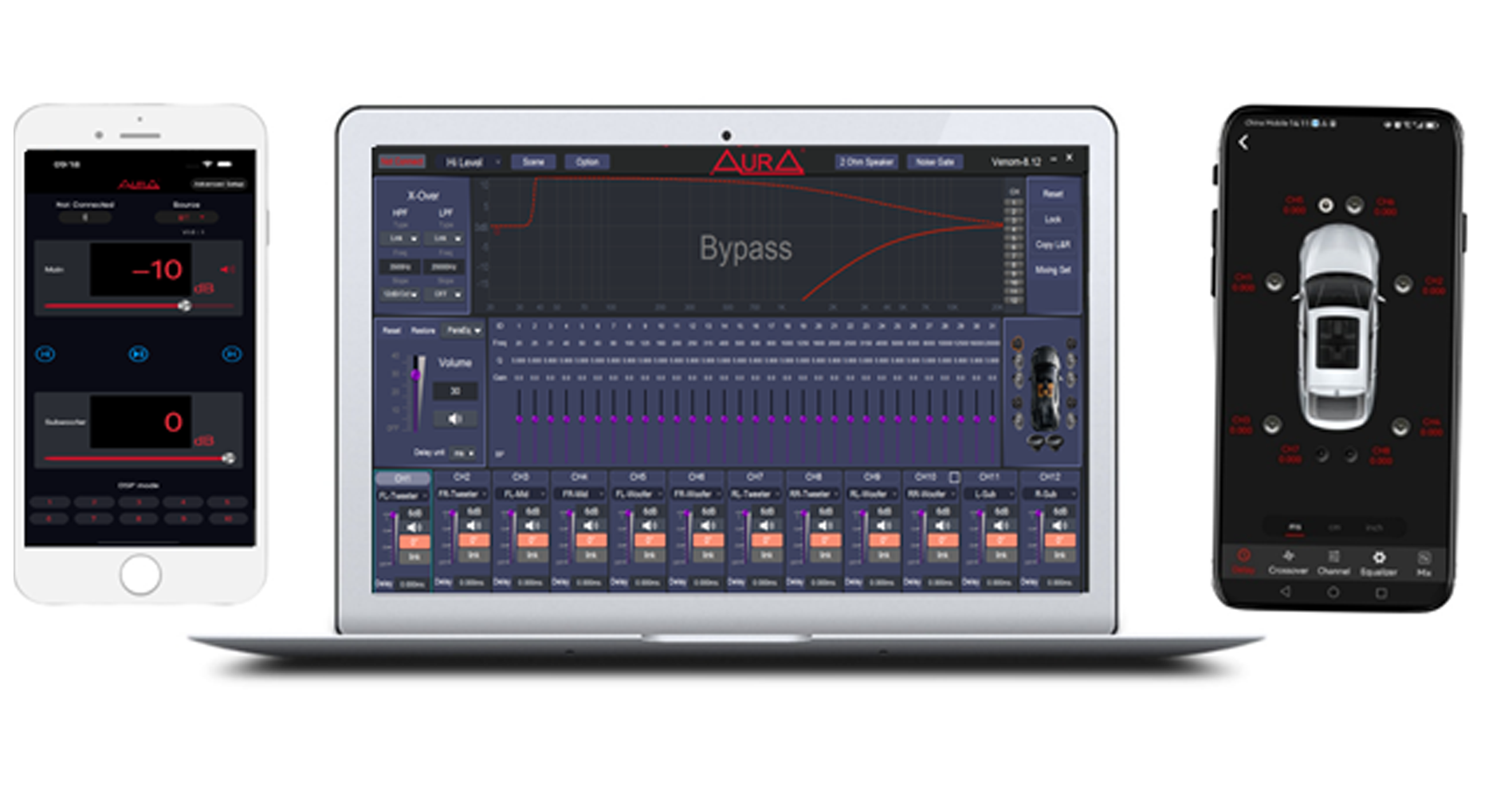

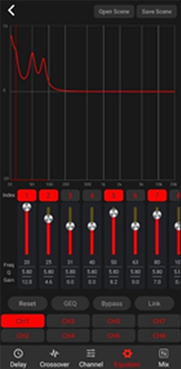

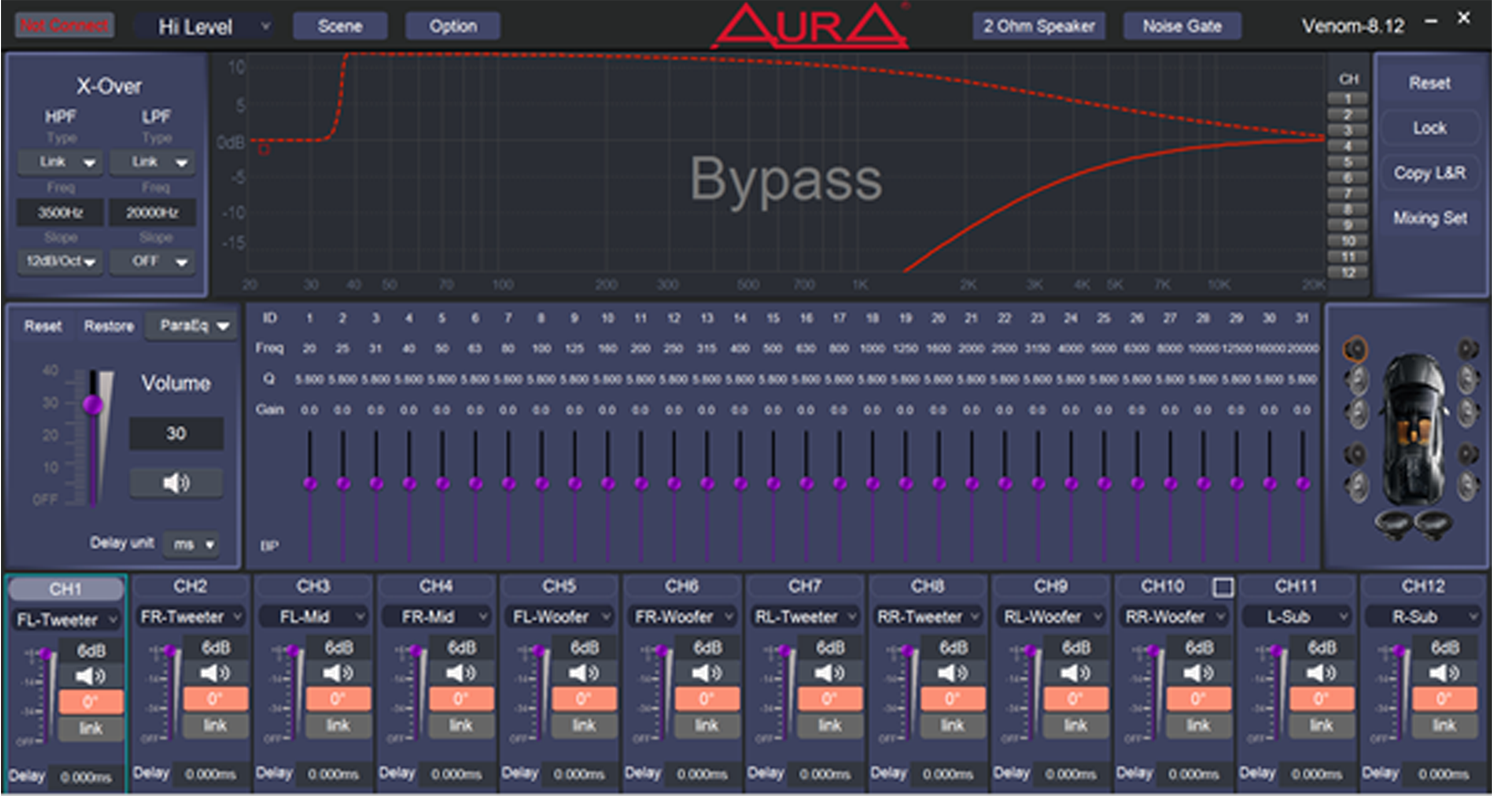

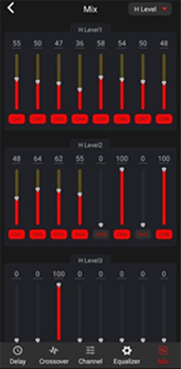

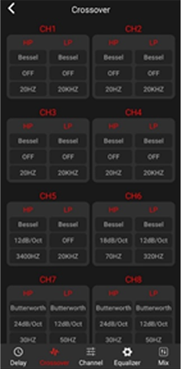

Software – Customizable Audio Control

PC SOFTWARE/IOS & ANDROID APP- 31-Band EQ/X-Over/Master

Volume Control/ Time Delay

DOWNLOAD AURA DSP AMP APP FROM APP STORE OR PLAY STORE

SpecificationDetails
TYPE 8IN 12OUT DSP WITH BUILT IN AMPLIFIER
INPUT 8 Hi LEVEL, 2 LO LEVEL RCA, Optical, USB Audio, USB Disk, BT, USB OTG
INPUT VOLTAGE (MAX) Hi LEVEL - 5.5–10V, RCA - 1.5–2.5V
OUTPUT 10 Hi LEVEL, 12 LO LEVEL RCA
OUTPUT VOLTAGE (MAX) AMPLIFIER OUTPUT: CH1>8 -14Vrms, CH9/10 -20Vrms, RCA - 4Vrms
OUTPUT GAIN POWER AMPLIFIER: 26 dB
OPTICAL IN YES
Amplifier Type CLASS D
POWER OUTPUT (RMS) 8x50W @4 OHMS + 100WX2 @4 OHM, 2x150W @2 OHMS (Bridged 300W @4 OHMS)
(AD & DA) SIGNAL CONVERSION CIRRUS LOGIC SMART HIFI 3-core DSP CS47L35, CS4344, AKM4619
SAMPING RATE 24Bit / 192KHz ADC/DAC
EQ/DELAY 31Band EQ / 15ms
FREQUENCY RANGE 20–20kHz
Q VALUE (SLOPE) 0.404–28.852
EQ GAIN -18.0dB to +12.0dB
FILTERING Butter, Bessel, Link
FILTERING CROSSOVER POINT 20–20kHz
FILTER SLOPE 6dB/oct -48dB/Oct
PHASE 0–180
TIME ALIGNMENT (DELAY) 15ms
PRESET 10
FREQUENCY RESPONSE 20–20kHz
SIGNAL TO NOISE - RCA 92dB
SIGNAL TO NOISE - POWER AMP 90dB
INPUT RESISTANCE 20kΩ
LOW LEVEL OUTPUT RESISTANCE 680Ω
STATIC CURRENT 1.2A
OPERATING VOLTAGE 9–16V
Working Current Voltage 0.5–50A
Bluetooth Yes
Bluetooth Version 5.1
USB Audio Built In Yes
USB Disk MP3, WMA, WAV, M4A, AAC and lossless format FLAC, APE
Remote Control TFT (Optional)
PC Connection Yes
PS Software Yes
Android App Yes
iOS App Yes
REM Input 3.5V
REM Output 0.1A
Over Heat Protection Yes
Over Load Protection Yes
Working Indicators Yes
Power Cord Universal
Instruction Manual English
PC Connection USB 2.0
Software/PC Requirements Microsoft Windows (32/64bit): XP, Vista, Windows 7, Windows 8, Windows 10, Windows 11
Operating Temperature Range -30°C to 70°C
Size 230(L) x 167(W) x 48(H) mm
